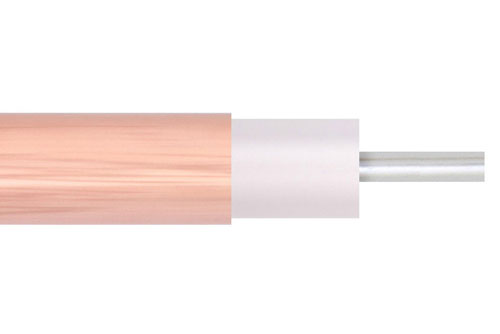

RG402 Coax Cable (by foot) with Copper Outer Conductor

Name: RG402 Coax Cable (by foot) with Copper Outer Conductor
Brand: Pasternack
SKU: RG402/U-STR-FT
Availability: Discontinued

Product ID: RG402/U-STR-FT

Product discontinued.

Replaced with RG402/U-STR-BULK.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG402
Flex Type	Semi-Rigid
Impedance	50 Ohm
Dielectric Type	PTFE
Velocity of Propagation	69.5 %
No. of Shields	1
Attenuation at 1 Ghz.	12 dB
Power, Max at 1 Ghz.	450 Watts
Frequency, Max	33 GHz
Max Operating Temperature	125 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, Repeated	0.25 in
Coax Type	Coax

Description

RG402 Coax Cable (by foot) with Copper Outer Conductor

RG402/U-STR-FT part number from Pasternack is a RG402 coax cable that is semi-rigid. Pasternack RG402 semi-rigid coax cable is 50 Ohm and has a PTFE dielectric. RG402 coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 33 GHz. RG402 coax cable has an attenuation at 1 GHz of 12 dB and a maximum power of 450 watts at 1 GHz.

Pasternack RG402 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG402 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG402 or other coax can be built and shipped same day as well.
