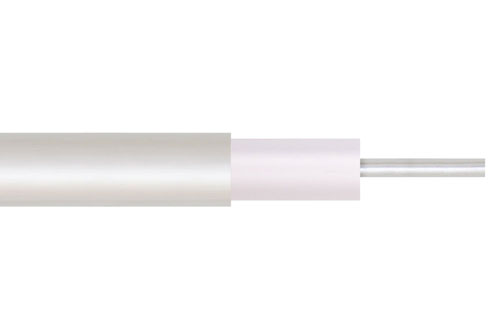

RG405 Tinned Coax Cable with Tinned Copper Outer Conductor in Coiled Sections

Name: RG405 Tinned Coax Cable with Tinned Copper Outer Conductor in Coiled Sections
Brand: Pasternack
SKU: PE-SR405TN-BULK
Availability: InStock

Product ID: PE-SR405TN-BULK

Pricing

Quantity (Feet)	Price
1-24	$10.79
25-49	$10.25
50-99	$9.71
100-249	$9.28
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 142

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG405 Tinned
Flex Type	Semi-Rigid
Impedance	50 Ohm
Dielectric Type	PTFE
No. of Shields	1
Attenuation at 1 Ghz.	22 dB
Frequency, Max	40 GHz
Max Operating Temperature	125 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, One Time	0.05 in
Coax Type	Coax

Description

RG405 Tinned Coax Cable with Tinned Copper Outer Conductor

PE-SR405TN-BULK part number from Pasternack is a RG405 Tinned coax cable that is semi-rigid. Pasternack RG405 Tinned semi-rigid coax cable is 50 Ohm and has a PTFE dielectric. RG405 Tinned coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 40 GHz. RG405 Tinned coax cable has an attenuation at 1 GHz of 22 dB.

Pasternack RG405 Tinned coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG405 Tinned cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG405 Tinned or other coax can be built and shipped same day as well.
