IQ Mixer Operating From 15 GHz to 23 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable SMA

Product ID: PE86X9004
IQ Mixer Operating From 15 GHz to 23 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable SMA

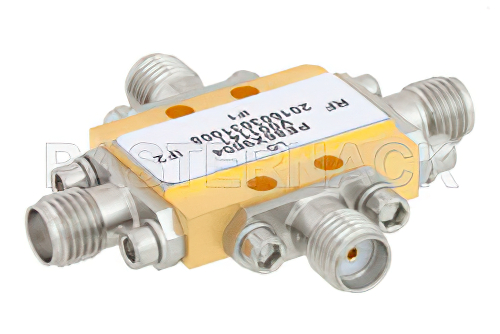

Image Views:  IQ Mixer Operating From 15 GHz to 23 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable SMA high resolution
Zoomalternate image
View 2


Click for:PE86X9004 Datasheet
Click for:PE86X9004 RoHS Cert
Available Quantity: 8
Pricing Table
QUANTITYPRICE
1-1$3,899.53
2-4$3,665.56
5-9$3,470.58
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
RF Connector SeriesSMA
RF Connector GenderFemale
LO Connector SeriesSMA
LO Connector GenderFemale
IF Connector SeriesSMA
IF Connector GenderFemale
RF Minimum Frequency15 GHz
RF Maximum Frequency23 GHz
LO Minimum Frequency15 GHz
LO Maximum Frequency23 GHz
IF Minimum FrequencyDC
IF Maximum Frequency3.5 GHz


IQ Mixer Operating From 15 GHz to 23 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable SMA

RF iq mixer (also referred to as a frequency mixer) PE86X9004 from Pasternack has SMA connector. This SMA iq mixer is manufactured with a impedance and has a RF to LO isolation of 30 dB.

This radio frequency iq mixer has a RF frequency range of 15 GHz for the minimum and 23 GHz for the maximum. PE86X9004 iq frequency mixer LO frequency range is 15 GHz for the minimum and 23 GHz for the maximum. Our frequency mixer that is iq has an IF frequency range of DC for a minimum and 3.5 GHz for a maximum.

Iq mixer from Pasternack is rated for a third order intercept point of 25 dBm. This 50 Ohm SMA iq frequency mixer is part of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our iq mixer is in-stock and Pasternack is where to buy your RF mixer components for same day shipping throughout the United States and internationally, as with all other Pasternack radio frequency parts.
