Double Balanced Mixer Operating From 2 GHz to 18 GHz With an IF Range From DC to 600 MHz And LO Power of +10 dBm, SMA

Product ID: PE8652
Double Balanced Mixer Operating From 2 GHz to 18 GHz With an IF Range From DC to 600 MHz And LO Power of +10 dBm, SMA

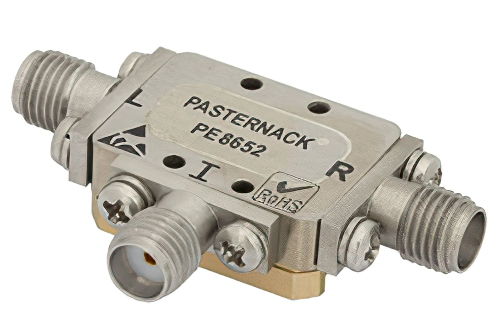

Image Views:  Double Balanced Mixer Operating From 2 GHz to 18 GHz With an IF Range From DC to 600 MHz And LO Power of +10 dBm, SMA high resolution
Zoom


Click for:PE8652 Datasheet
Click for:PE8652 RoHS Cert
Click for:PE8652 REACH Cert
Available Quantity: 12
Pricing Table
QUANTITYPRICE
1-1$784.60
2-4$737.52
5-9$698.29
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
RF Connector SeriesSMA
RF Connector GenderFemale
LO Connector SeriesSMA
LO Connector GenderFemale
IF Connector SeriesSMA
IF Connector GenderFemale
RF Minimum Frequency2 GHz
RF Maximum Frequency18 GHz
LO Minimum Frequency2 GHz
LO Maximum Frequency18 GHz
IF Minimum FrequencyDC
IF Maximum Frequency600 MHz


50 Ohm SMA Mixer Operating From 2 GHz to 18 GHz With an IF Range From 2 GHz to 18 GHz And LO Power of +10 dBm

RF double balanced mixer (also referred to as a frequency mixer) PE8652 from Pasternack has SMA connector. This SMA double balanced mixer is manufactured with a 50 Ohm impedance and has a RF to LO isolation of 20 dB.

This radio frequency double balanced mixer has a RF frequency range of 2 GHz for the minimum and 18 GHz for the maximum. PE8652 double balanced frequency mixer LO frequency range is 2 GHz for the minimum and 18 GHz for the maximum. Our frequency mixer that is double balanced has an IF frequency range of DC for a minimum and 600 MHz for a maximum.

Double balanced mixer from Pasternack is rated for a third order intercept point of 13 dBm. This 50 Ohm SMA double balanced frequency mixer is part of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our double balanced mixer is in-stock and Pasternack is where to buy your RF mixer components for same day shipping throughout the United States and internationally, as with all other Pasternack radio frequency parts.
