SMA Transfer PIN Diode Switch Operating From 1 GHz to 18 GHz Up To +27 dBm

Product ID: PE7134
SMA Transfer PIN Diode Switch Operating From 1 GHz to 18 GHz Up To +27 dBm

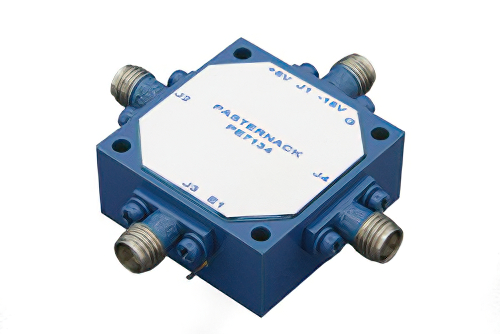

Image Views:  SMA Transfer PIN Diode Switch Operating From 1 GHz to 18 GHz Up To +27 dBm high resolution
Zoom


Click for:PE7134 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE71S6292
Remaining Quantity Available: 5
Pricing Table
QUANTITYPRICE
1-1$3,510.38
2-4$3,299.76
5-9$3,124.24
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignAbsorptive
Minimum Frequency1,000 MHz
Maximum Frequency18 GHz
Impedance50 Ohm
Maximum Input Power0.5 Watts
Maximum Input VSWR2:1
Maximum Insertion Loss3.1 dB
Minimum Isolation65 dB


SMA Transfer PIN Diode Switch Operating From 1 GHz to 18 GHz Up To +27 dBm

PE7134 PIN diode switch from Pasternack is a Absorptive design. Our RF Absorptive PIN diode switch uses SMA connectors at 50 Ohm. This SMA PIN diode Absorptive switch has a minimum frequency of 1,000 MHz and a maximum frequency of 18 GHz. The Pasternack PIN diode Absorptive RF switch is rated at a switching speed of 100 ns and a maximum input power of 0.5 Watts (+27 dBm ).

Insertion loss maximum of this SMA Absorptive switch is 3.1 dB with an isolation minimum of 65 dB. Absorptive PIN diode radio frequency switch PE7134 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Absorptive SMA coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
