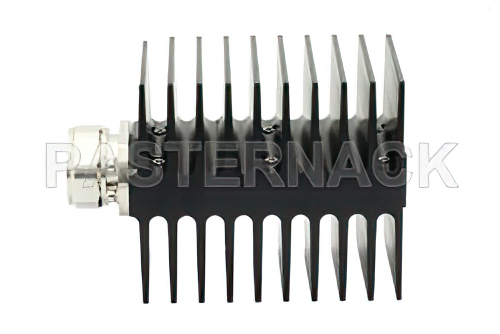

Medium Power 50 Watts RF Load Up To 4 GHz With 7/16 DIN Male Input Square Body Black Anodized Aluminum Heatsink

Product ID: PE6169

Pricing

QuantityPrice
1-9$510.98
10-24$485.43
25-49$459.88
50+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 11
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector Series7/16 DIN
Connector GenderMale
Minimum FrequencyDC
Maximum Frequency4 GHz
Impedance50 Ohm
Maximum VSWR1.25:1
Maximum Power50 Watt

Description

Medium Power 50 Watts RF Load Up To 4 GHz With 7/16 DIN Male Input Square Body Black Anodized Aluminum Heatsink

PE6169 50 Watts RF load (also known as termination or dummy load) has a 7/16 DIN connector that is male. This Pasternack 50 watts 7/16 DIN male load / termination is rated for a maximum frequency of 4 GHz. Our 7/16 DIN male termination load is a rf load termination with a 50 Ohm impedance.

This 7/16 DIN load / coax terminator is manufactured with no chain and brass body. Pasternack 50 Ohm 7/16 DIN coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.25:1. PE6169 50 watts 7/16 DIN male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our 7/16 DIN male 50 watts termination load will ship worldwide the same day as purchased.
