Standard TNC 50 Watts Dummy Loads

Check out our new RF calculators & conversion tools...

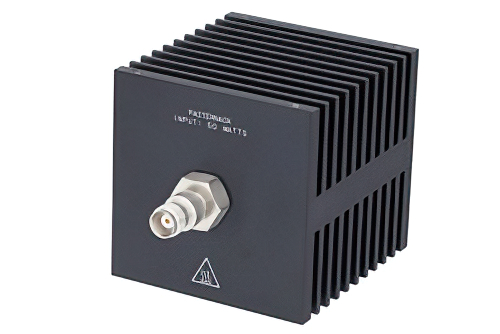

Medium Power 50 Watts RF Load Up To 18 GHz With TNC Female Input Square Body Black Anodized Aluminum Heatsink

Product ID: PE6216
Medium Power 50 Watts RF Load Up To 18 GHz With TNC Female Input Square Body Black Anodized Aluminum Heatsink


Image Views:  Medium Power 50 Watts RF Load Up To 18 GHz With TNC Female Input Square Body Black Anodized Aluminum Heatsink high resolution
Zoomalternate image

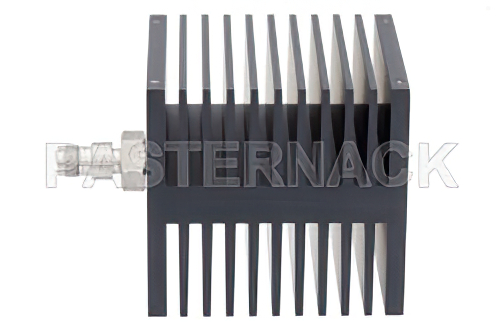

View 2


Click for:PE6216 Datasheet
Available Quantity: Call for Availability
Pricing Table
QUANTITYPRICE
1-9$497.13
10-24$472.27
25-49$447.42
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesTNC
Connector GenderFemale
Minimum FrequencyDC
Maximum Frequency18 GHz
Impedance50 Ohm
Maximum VSWR1.6:1
Maximum Power50 Watt


Medium Power 50 Watts RF Load Up To 18 GHz With TNC Female Input Square Body Black Anodized Aluminum Heatsink

PE6216 50 Watts RF load (also known as termination or dummy load) has a TNC connector that is female. This Pasternack 50 watts TNC female load / termination is rated for a maximum frequency of 18 GHz. Our TNC female termination load is a rf load termination with a 50 Ohm impedance.

This TNC load / coax terminator is manufactured with no chain and passivated stainless steel body. Pasternack 50 Ohm TNC coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.6:1. PE6216 50 watts TNC female load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our TNC female 50 watts termination load will ship worldwide the same day as purchased.
