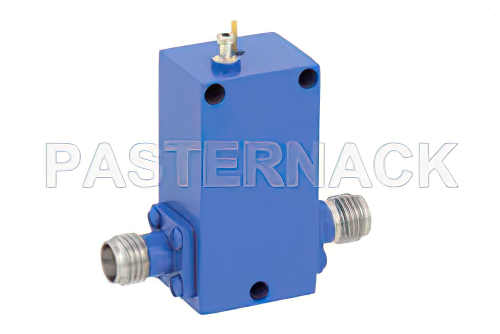

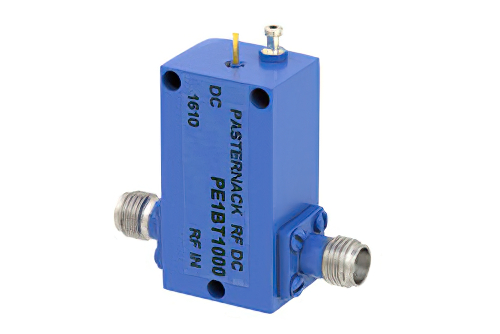

500 MHz to 10 GHz SMA Bias Tee Rated to 700 mA and 50 Volts DC

PE1BT1000 bias tee (also called bias T) has an SMA connector RF port that is female gender. This Pasternack female SMA bias tee design is rated for a minimum frequency of 500 MHz and a maximum frequency of 10 GHz. Our RF coaxial bias tee has a pin DC port connector with a female gender.

This SMA bias tee / T is rated for a max. DC voltage of 50 Volts and a max. current of 700 mA. The PE1BT1000 bias T with SMA connector series for RF port is designed with a maximum VSWR of 1.6:1 and a RF to bias isolation minimum of 40 dB. Pasternack's radio frequency bias tee is one of over 40,000 RF, microwave and millimeter wave components supplied by us. Our coaxial SMA bias T can be purchased and will be shipped worldwide the same-day as with other in-stock Pasternack RF parts.
