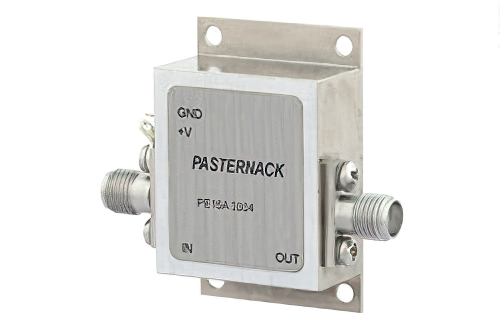

1 Watt Psat, 110 MHz to 6 GHz, Medium Power Broadband Amplifier, 10.5 dB Gain, 38 dBm IP3, 6.5 dB NF, SMA

Product ID: PE15A3004
1 Watt Psat, 110 MHz to 6 GHz, Medium Power Broadband Amplifier, 10.5 dB Gain, 38 dBm IP3, 6.5 dB NF, SMA


Image Views:  1 Watt Psat, 110 MHz to 6 GHz, Medium Power Broadband Amplifier, 10.5 dB Gain, 38 dBm IP3, 6.5 dB NF, SMA high resolution
Zoomalternate image
View 2


Click for:PE15A3004 Datasheet
Click for:PE15A3004 RoHS Cert
Click for:PE15A3004 REACH Cert
Available Quantity: 5
Pricing Table
QUANTITYPRICE
1-1$2,349.55
2-4$2,208.58
5-9$2,091.10
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output1 Watt (30 dBm) Psat
Frequency, Min110 MHz
Frequency, Max6 GHz
Gain, Min10.5 dB
3rd Intercept Point38 dB
RF Input VSWR Max1.67:1
Connector SeriesSMA


1 Watt Psat, 110 MHz to 6 GHz, Medium Power Broadband Amplifier, 10.5 dB Gain, 38 dBm IP3, 6.5 dB NF, SMA

PE15A3004 medium power broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized medium power broadband amplifier uses SMA connectors at 50 Ohm. This SMA broadband amplifier has wide-band capability with a minimum frequency of 110 MHz and maximum frequency of 6 GHz. The minimum gain of this broad-band radio frequency amplifier is 10.5 dB.

Pasternack broadband amplifier PE15A3004 is rated at 1 Watt (30 dBm) Psat and 1.67:1 input VSWR maximum. Our broad band radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
