6 Section Bandpass Filter With SMA Female Connectors Operating From 17.2 GHz to 18.2 GHz With a 1,000 MHz Passband

Product ID: PE87FL1008
6 Section Bandpass Filter With SMA Female Connectors Operating From 17.2 GHz to 18.2 GHz With a 1,000 MHz Passband

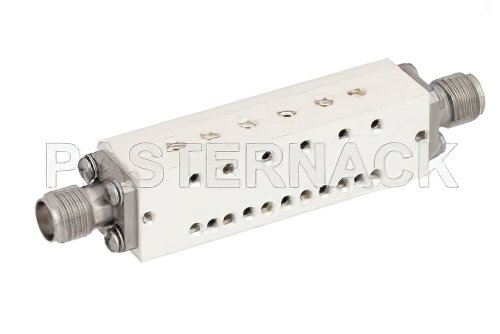

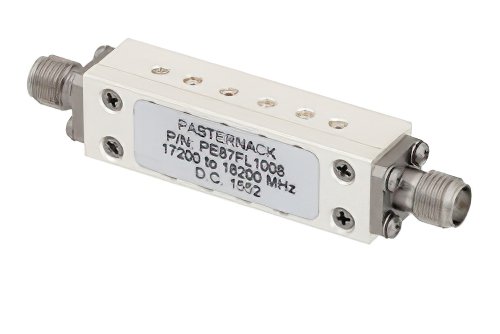

Image Views:  6 Section Bandpass Filter With SMA Female Connectors Operating From 17.2 GHz to 18.2 GHz With a 1,000 MHz Passband high resolution
Zoomalternate image
View 2


Click for:PE87FL1008 Datasheet
Click for:PE87FL1008 RoHS Cert
Click for:PE87FL1008 REACH Cert
Available Quantity: 18
Pricing Table
QUANTITYPRICE
1-9$450.12
10-24$427.61
25-49$405.11
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale
Bandpass Min Frequency17.2 GHz
Bandpass Max Frequency18.2 GHz
RF Filter DesignCombline
Impedance50 Ohm
Maximum Insertion Loss1.5 dB
Maximum Power2 Watts


6 Section Bandpass Filter With SMA Female Connectors Operating From 17.2 GHz to 18.2 GHz With a 1,000 MHz Passband

Bandpass filter PE87FL1008 from Pasternack is part of our extensive in-stock RF components for sale. Our band pass filter is manufactured with SMA connectors that are female and in a 6 section design. This 6 section SMA bandpass filter for has an insertion loss of 1.5 dB and a maximum power of 2 Watts.

Frequency range of this band pass filter is 17.2 GHz to 18.2 GHz and the passband is 1 GHz. PE87FL1008 bandpass filter for band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 6 section bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
