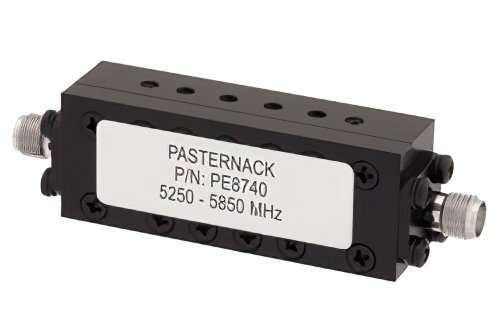

6 Section Bandpass Filter With SMA Female Connectors Operating From 5.25 GHz to 5.85 GHz With a 600 MHz Passband

Product ID: PE8740
6 Section Bandpass Filter With SMA Female Connectors Operating From 5.25 GHz to 5.85 GHz With a 600 MHz Passband


Image Views:  6 Section Bandpass Filter With SMA Female Connectors Operating From 5.25 GHz to 5.85 GHz With a 600 MHz Passband high resolution
Zoomalternate image

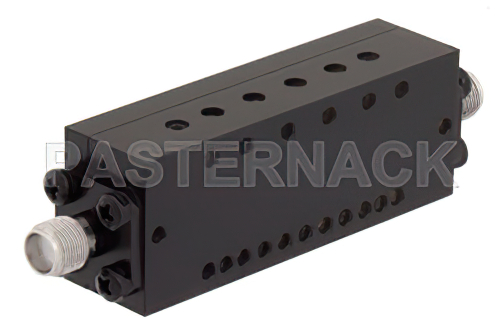

View 2


Click for:PE8740 Datasheet
Click for:PE8740 RoHS Cert
Click for:PE8740 REACH Cert
Available Quantity: 66
Pricing Table
QUANTITYPRICE
1-9$353.66
10-24$335.98
25-49$318.29
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
BandsP2P and Public Safety
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale
Bandpass Min Frequency5.25 GHz
Bandpass Max Frequency5.85 GHz
RF Filter DesignCombline
Maximum Insertion Loss1.5 dB
Maximum Power5 Watts


6 Section Bandpass Filter With SMA Female Connectors Operating From 5.25 GHz to 5.85 GHz With a 600 MHz Passband

P2P and Public Safety bandpass filter PE8740 from Pasternack is part of our extensive in-stock RF components for sale. Our P2P and Public Safety band pass filter is manufactured with SMA connectors that are female and in a 6 section design. This 6 section SMA bandpass filter for P2P and Public Safety has an insertion loss of 1.500 dB and a maximum power of 5 Watts.

Frequency range of this band pass filter is 5.25 GHz to 5.85 GHz and the passband is 600 MHz. PE8740 bandpass filter for P2P and Public Safety band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 6 section P2P and Public Safety bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
