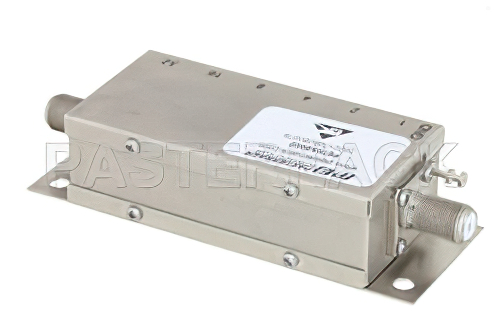

6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female

Product ID: PE70A8003

Pricing

Quantity	Price
1-4	$1,459.50

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 13

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Design	Relay Controlled
Maximum Frequency	1,000 MHz
Impedance	75 Ohm
Power Maximum	1 Watt
VSWR Maximum	1.4:1
Connector Series 1	F
Connector Gender 1	Female
Connector Series 2	F
Connector Gender 2	Female
Minimum Attenuation	0 dB
Maximum Attenuation	63 dB
Switching Time	6,000,000 ns
Attenuation Accuracy per Step	0.3 dB

Description

6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female

PE70A8003 is a programmable attenuator from Pasternack. Our F attenuator is a programmable step attenuator design. This 75 Ohm adjustable attenuator is precision manufactured to RF and microwave industry specifications.

The Pasternack programmable attenuator has a female gender for connector 1 and a F female for connector 2. PE70A8003 programmable step attenuator has a minimum attenuation of 0 dB and a maximum attenuation of 63 dB with 6dB step sizes. Our programmable RF attenuator has frequency range of DC to 1 GHz and a maximum VSWR of 1.4. This adjustable SMA attenuator is rated to 1 Watt at the stated attenuation.

Our attenuator PE70A8003 is shipped from our facility certified to ISO 9001:2015 the same day as purchased. This RF programmable attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
