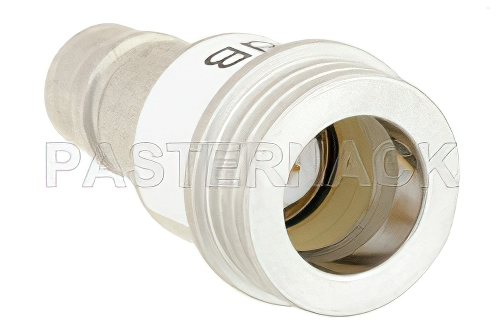

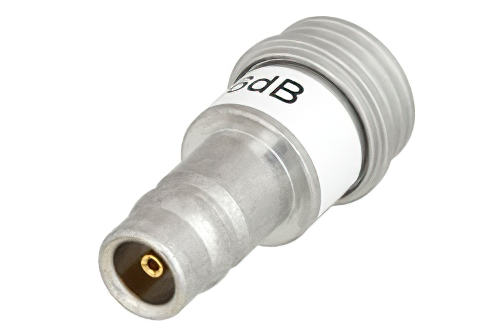

6 dB Fixed Attenuator, QN Male to QN Female Brass Tri-Metal Body Rated to 1 Watt Up to 3 GHz

Product ID: PE7AP1000-6
6 dB Fixed Attenuator, QN Male to QN Female Brass Tri-Metal Body Rated to 1 Watt Up to 3 GHz


Image Views:  6 dB Fixed Attenuator, QN Male to QN Female Brass Tri-Metal Body Rated to 1 Watt Up to 3 GHz high resolution
Zoomalternate image
View 2


Click for:PE7AP1000-6 Datasheet
Click for:PE7AP1000-6 RoHS Cert
Click for:PE7AP1000-6 REACH Cert
Available Quantity: 49
Pricing Table
QUANTITYPRICE
1-24$128.52
25-49$119.52
50-99$110.53
100-249$102.82
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
DesignFixed
Maximum Frequency3 GHz
Impedance50 Ohm
Power Maximum1 Watt
Attenuation6 dB
Connector Series 1QN
Connector Gender 1Male
Connector Series 2QN
Connector Gender 2Female
Body MaterialBrass
Body PlatingTri-Metal


6 dB Fixed Attenuator, QN Male to QN Female Brass Tri-Metal Body Rated to 1 Watt Up to 3 GHz

PE7AP1000-6 is a fixed 6 dB attenuator from Pasternack. This 6dB attenuator is an in-line, resistive PI attenuator pad design. Our coaxial 50 Ohm attenuator is manufactured to precise RF / microwave industry specifications.

This QN attenuator has a male gender on side 1 and a QN female connector on side 2. The Pasternack PE7AP1000-6 6 dB attenuator is rated for up to 3 GHz. Our microwave attenuator is rated to 1 Watts at the stated attenuation value.

Our fixed RF attenuator PE7AP1000-6 is shipped same-day as purchased from Pasternack's ISO 9001:2008 facility. This 6dB attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
