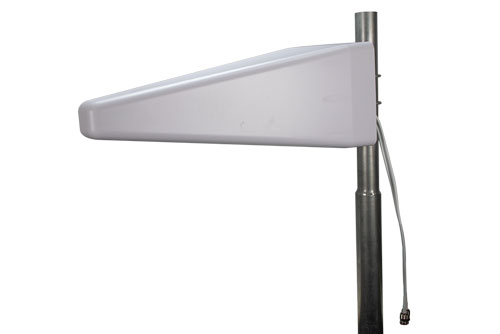

Pasternack’s PEANLP1004 high gain log periodic antenna is designed to operate from 600 to 3800 MHz. With 11 dbi of gain, PEANLP1004 is ideal for boosting 5G, LTE, CMDA, LoRA, IoT, WIFI. The Pasternack log periodic PEANLP1004 can be used for long distance directional communication over a wide range of frequencies.
Log periodic antennas from Pasternack function as boosters where the existing cellular signal is weak and needs to reach further distances. The PEANLP1004 has V/H polarization, 85 horizontal beamwidth, and 65 vertical beamwidth for point to point communication. The included mounting brackets allow for either vertical or horizontal mounting configurations. The directional PEANLP1004 antenna has 2 Type N Female connector on a 20 Inches long pigtail.
The 11 dBi max gain log periodic PEANLP1004 antenna operates in 5G bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n67, n70, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98. This 600 to 3800 MHz 5G directional log periodic antenna with Type N connector is in stock and ready to ship the same day. Contact Pasternack’s knowledgeable and friendly technical support and sales staff for your answers on antennas or other products.
