Radio frequency assembly 7/16 DIN female bulkhead to 7/16 DIN female bulkhead low loss cable using LMR-400-UF coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The 7/16 DIN female bulkhead to 7/16 DIN female bulkhead low loss cable using LMR-400-UF coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom 7/16 DIN to 7/16 DIN cable assembly orders will ship the same business day as well.

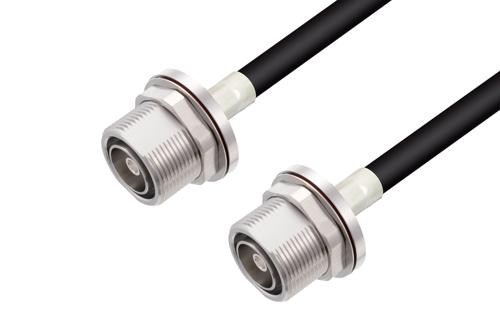

Pasternack RF coax low loss cable assembly is built with a 7/16 DIN bulkhead cable connection on one end and a 7/16 DIN bulkhead cable connection on the other. Our low loss 7/16 DIN to 7/16 DIN cable assembly has a female gender on end 1 and a female on end 2. PE3W13264 can also be known as a low loss 7/16 DIN jack to 7/16 DIN jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PE (F) dielectric type.
This cable assembly employs durable and flexible materials, and with a 4-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W13264 RF cable has a TPE jacket of 0.405-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The flexible RF cable has an in-series connection. This cable assembly has a typical propagation velocity of 85% and a minimum RF shielding of 90 dB. Our bulkhead 7/16 DIN female to bulkhead 7/16 DIN female cable has a maximum VSWR of 1.323:1.
7/16 DIN jack to 7/16 DIN jack cable assembly PE3W13264 is built with LMR-400-UF which is a flexible coax type. The Pasternack flexible 7/16 DIN cable assembly is manufactured with 7/16 DIN to 7/16 DIN cable connectors, has a 50 Ohm impedance, and is double shielded. This RF cable assembly features 2700 Vdc max DC voltage. Both the connectors have a crimp/solder attachment method and a brass body with tri-metal plating. Additional dimensions, specifications and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet.
Low loss 7/16 DIN jack bulkhead to 7/16 DIN jack bulkhead cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality 7/16 DIN to 7/16 DIN cable assembly for quick shipment worldwide. Variations of 7/16 DIN cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal 7/16 DIN to 7/16 DIN low loss RF cable assembly as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
