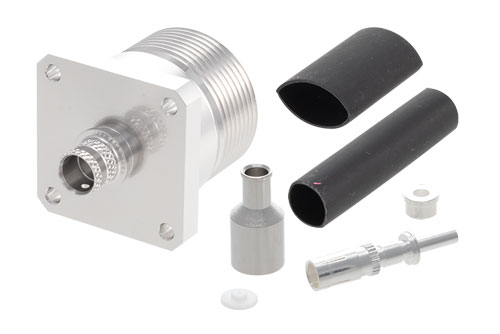

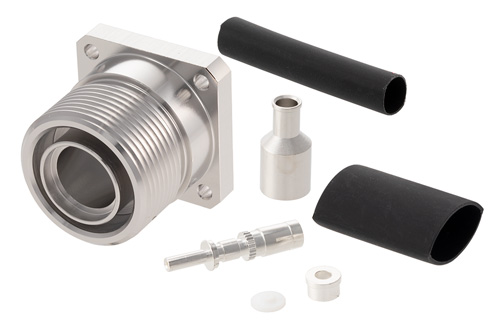

7/16 DIN Female Low PIM Connector Solder Attachment 4 Hole Flange Mount for TFT-5G-402

TC-402-716F-PM-LP 7/16 DIN female coaxial connector has an interface type of TFT-402 and a 50 Ohm impedance. Pasternack 7/16 DIN female connector uses shield/contact solder/solder as an attachment method. Our female 7/16 DIN coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack 7/16 DIN female coaxial connector has a PTFE dielectric type and a VSWR of 1.25. The Pasternack 7/16 DIN coaxial connector has a brass body with tri-metal plating. Our TC-402-716F-PM-LP 7/16 DIN connector uses brass contact and a tri-metal plating material. This 7/16 DIN female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female 7/16 DIN connector will ship the same day as purchased. Our 7/16 DIN female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 7/16 DIN connector cable assemblies that will ship the same day as well.
