7/16 DIN Male Right Angle to 7/16 DIN Male Cable Assemblies

Check out our new RF calculators & conversion tools...

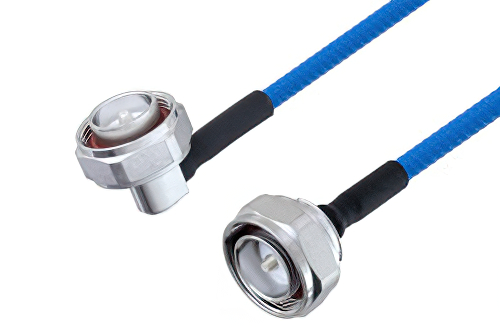

Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

Product ID: PE3C4131-200CM
Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS


Image Views:  Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS high resolution
Zoomalternate image
View 2


Click for:PE3C4131-200CM Datasheet
Click for:PE3C4131-200CM RoHS Cert
Click for:PE3C4131-200CM REACH Cert
Available Quantity: 10
Standard Lengths
100 cm.
Pricing Table
QUANTITYPRICE
1-1$151.67
2-4$148.64
5-9$145.60
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 17/16 DIN
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 27/16 DIN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberSPP-250-LLPL
RF Cable TypeSPP-250-LLPL
RF Cable Impedance50 Ohm


Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4131-200CM is a 7/16 DIN male right angle to 7/16 DIN male cable using SPP-250-LLPL coax. This Pasternack 7/16 DIN male right angle to 7/16 DIN male cable assembly uses a 50 Ohm 7/16 DIN for connector 1 and a 50 Ohm 7/16 DIN for connector 2. 7/16 DIN right angle to 7/16 DIN coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male 7/16 DIN right angle to male 7/16 DIN cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4131-200CM 7/16 DIN male right angle to 7/16 DIN male cable assembly is constructed with SPP-250-LLPL coax and the maximum VSWR is 1.35:1.
