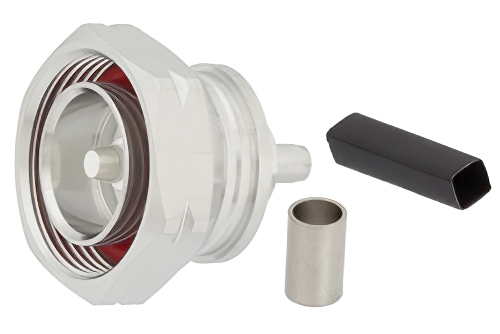

PE44994 7/16 DIN male coaxial connector has an interface type of 7/16 DIN male, which is compatible with PE-C240, RG8X, .240 inch, LMR®-240, LMR®-240-DB and LMR®-240-UF cables, and has an impedance of 50 Ohms. Pasternack’s 7/16 DIN male connector uses crimp/non-solder contact as an attachment method. Our male 7/16 DIN coaxial connector provides a maximum frequency of 6 GHz. This 7/16 DIN male RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack 7/16 DIN male coaxial connector has a PTFE dielectric type and a VSWR of 1.25:1. Pasternack’s 7/16 DIN coaxial connector has a brass body with tri-metal plating. Our PE44994 7/16 DIN connector uses a silver-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
This 7/16 DIN connector has a silver inner contact plating. Our 7/16 DIN male connector has a length of 1.82 inches, a width of 1.25 inches, and a weight of 0.17 lbs. This threaded 7/16 DIN male coaxial connector features a tri-metal plated brass coupling nut.
This Pasternack male 7/16 DIN connector will ship the same business day as purchased. Our 7/16 DIN male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
