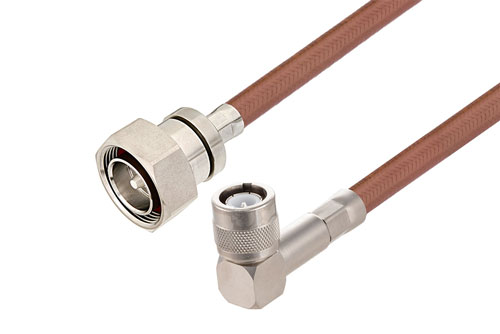

7/16 DIN Male to C Male Right Angle Cable Using RG393 Coax , LF Solder

Product ID: PE37740LF

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	7/16 DIN
Connector 1 Gender	Male
Connector 1 Polarity	Standard
Connector Angle 1	Straight
Connector 1 Impedance	50 Ohm
Connector 2 Series	C
Connector 2 Gender	Male
Connector 2 Polarity	Standard
Connector Angle 2	Right Angle
Connector 2 Impedance	50 Ohm
Connector 1 Body Material	Brass
Connector 1 Body Plating	Nickel
RF Cable Part Number	RG393/U
RF Cable Type	RG393
RF Cable Impedance	50 Ohm

Description

7/16 DIN Male to C Male Right Angle Cable Using RG393 Coax , LF Solder

Radio frequency assembly 7/16 DIN male to C male right angle cable using RG393 coax , LF solder from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. The 7/16 DIN male to C male right angle cable using RG393 coax , LF solder, 7/16 DIN cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom 7/16 DIN to type C cable assembly orders will ship same day as well.

Pasternack RF coax cable assembly is built with 7/16 DIN cable connection on one end and right angle C type cable connection on the other. Our 7/16 DIN to right angle type C cable assemblies have a male gender on end 1 and male on end 2. PE37740LF can also be known as a 7/16 DIN plug to right angle type C plug cable assembly and will be shipped same-day as it is purchased.

7/16 DIN plug to C type plug cable assembly PE37740LF is built with RG393 which is a flexible coax type. The Pasternack flexible 7/16 DIN cable assembly is manufactured with 7/16 DIN to right angle type C cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this 7/16 DIN male to C type right angle male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE37740LF can also be used in the other direction and will be right angle type C male to 7/16 DIN male cable assembly if the opposite connectivity is required.
