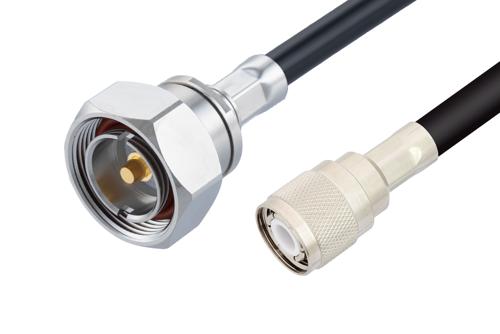

Radio frequency assembly 7/16 DIN male to HN male cable using RG214 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The 7/16 DIN male to HN male cable using RG214 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom 7/16 DIN to HN cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a 7/16 DIN cable connection on one end and a HN cable connection on the other. Our 7/16 DIN to HN cable assembly has a male gender on end 1 and a male on end 2. PE33702 can also be known as a 7/16 DIN plug to HN plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1.6-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE33702 RF cable has a PVC jacket of 0.425-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -20 to 80 degrees C. The flexible RF cable has a between series connection. Our 7/16 DIN male to HN male cable has a maximum VSWR of 1.4:1.
7/16 DIN plug to HN plug cable assembly PE33702 is built with RG214 which is a flexible coax type. The Pasternack flexible 7/16 DIN cable assembly is manufactured with 7/16 DIN to HN cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE33702 can also be used in the other direction and will be a HN male to 7/16 DIN male cable assembly if the opposite connectivity is required.
7/16 DIN plug to HN plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality 7/16 DIN to HN cable assembly for quick shipment worldwide. Variations of 7/16 DIN and HN cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal 7/16 DIN to HN RF cable assembly as per your requirements.
