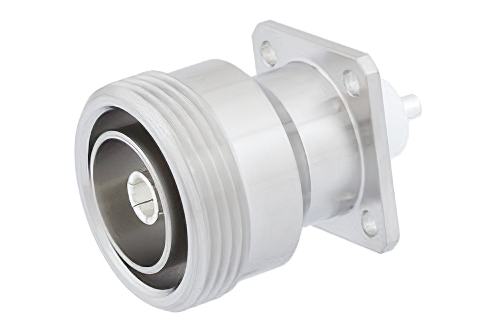

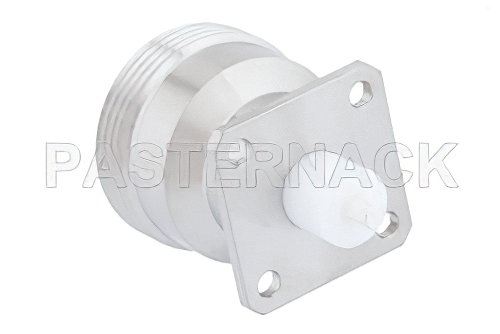

7/16 DIN Female Low PIM Connector Solder Attachment 4 Hole Flange Mount Stub Terminal, .120 inch Diameter

PE45000 7/16 DIN female 4 hole flange terminal connector has an interface type of stub and a 50 Ohm impedance. Pasternack 7/16 DIN female 4 hole flange connector uses shield/contact solder as an attachment method. Our female 7/16 DIN terminal connector provides a minimum frequency of DC and a maximum frequency of 7.5 GHz.

The Pasternack 7/16 DIN female 4 hole flange terminal connector has a PTFE dielectric type and a VSWR of 1.15. The Pasternack 7/16 DIN terminal connector has a brass body with tri-metal plating. Our PE45000 7/16 DIN connector uses brass contact. This 7/16 DIN female 4 hole flange terminal RF connector is RoHS and REACH compliant.

This Pasternack female 7/16 DIN 4 hole flange connector will ship the same day as purchased. Our 4 hole flange 7/16 DIN female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 7/16 DIN connector cable assemblies that will ship the same day as well.
