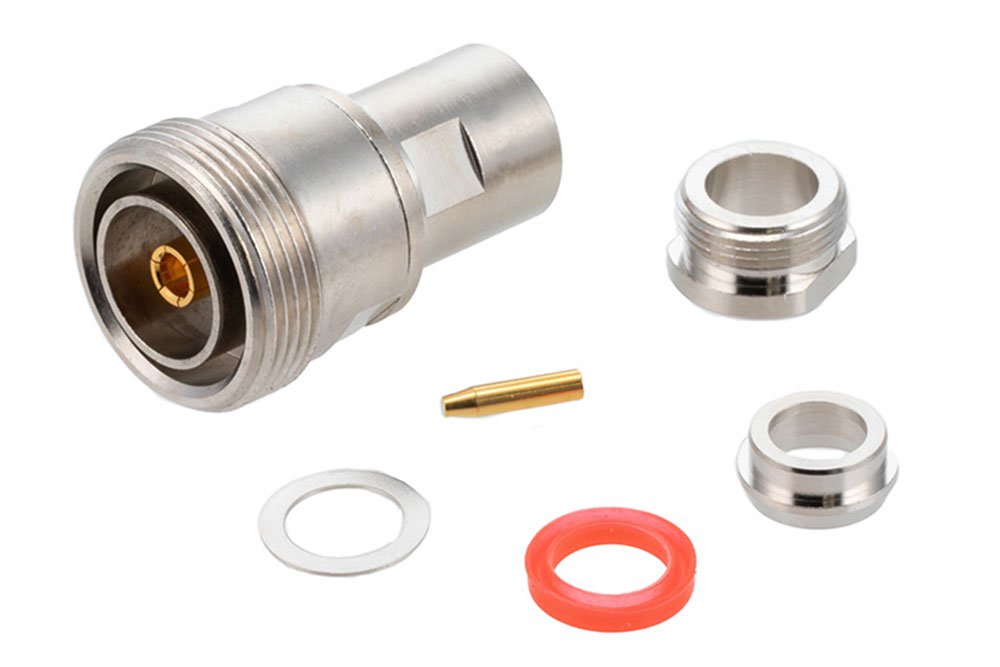

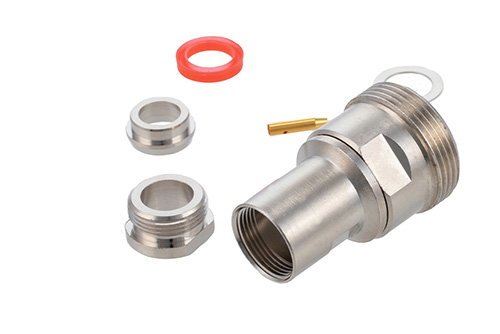

PE44283 7/16 DIN female coaxial connector has an interface type of 7/16 DIN female, which is compatible with RG213, RG214, RG225, RG393 and RG8 cables, and has an impedance of 50 Ohms. Pasternack’s 7/16 DIN female connector uses clamp/solder as an attachment method. This 7/16 DIN female RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack 7/16 DIN female coaxial connector has a PTFE dielectric type. Pasternack’s 7/16 DIN coaxial connector has a brass body with nickel plating. Our PE44283 7/16 DIN connector uses a gold-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE44283 RF connector features a 100 µin minimum body plating specification. This 7/16 DIN connector has a gold inner contact plating. Our 7/16 DIN female connector has a length of 1.99 inches, a width of 1.14 inches, and a weight of 0.249 lbs.
This Pasternack female 7/16 DIN connector will ship the same business day as purchased. Our 7/16 DIN female coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
