7/16 DIN Male Right Angle to 7/16 DIN Male Cable Assemblies

Check out our new RF calculators & conversion tools...

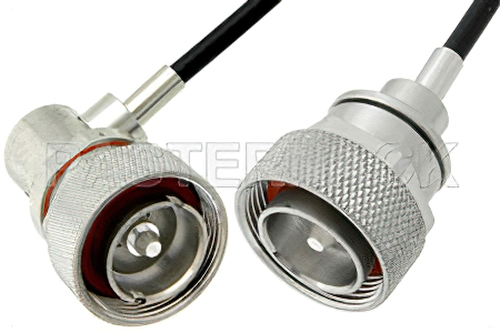

7/16 DIN Male to 7/16 DIN Male Right Angle Cable Using PE-C240 Coax

Product ID: PE37957
7/16 DIN Male to 7/16 DIN Male Right Angle Cable Using PE-C240 Coax

Image Views:  7/16 DIN Male to 7/16 DIN Male Right Angle Cable Using PE-C240 Coax high resolution
Zoom


Click for:PE37957 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
36 in.48 in.60 in.72 in.120 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 17/16 DIN
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 27/16 DIN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-C240
RF Cable TypePE-C240
RF Cable Impedance50


7/16 DIN Male to 7/16 DIN Male Right Angle Cable Using PE-C240 Coax

PE37957 is a 7/16 DIN male to 7/16 DIN male right angle cable using PE-C240 coax. This Pasternack 7/16 DIN male to 7/16 DIN male right angle cable assembly uses a 50 Ohm 7/16 DIN for connector 1 and a 50 Ohm 7/16 DIN for connector 2. 7/16 DIN to 7/16 DIN right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male 7/16 DIN to male 7/16 DIN right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE37957 7/16 DIN male to 7/16 DIN male right angle cable assembly is constructed with PE-C240 coax.
