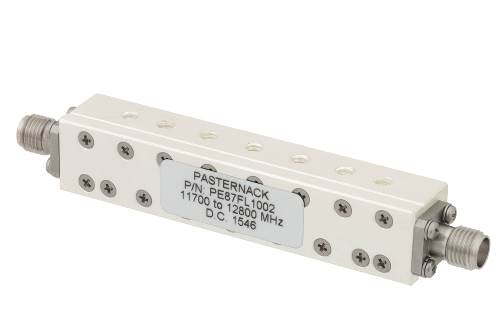

7 Section Bandpass Filter With SMA Female Connectors Operating From 11.7 GHz to 12.8 GHz With a 1.1 GHz Passband

Product ID: PE87FL1002
7 Section Bandpass Filter With SMA Female Connectors Operating From 11.7 GHz to 12.8 GHz With a 1.1 GHz Passband


Image Views:  7 Section Bandpass Filter With SMA Female Connectors Operating From 11.7 GHz to 12.8 GHz With a 1.1 GHz Passband high resolution
Zoomalternate image
View 2


Click for:PE87FL1002 Datasheet
Click for:PE87FL1002 RoHS Cert
Click for:PE87FL1002 REACH Cert
Available Quantity: 17
Pricing Table
QUANTITYPRICE
1-9$481.63
10-24$457.55
25-49$433.47
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale
Bandpass Min Frequency11.7 GHz
Bandpass Max Frequency12.8 GHz
RF Filter DesignCombline
Impedance50 Ohm
Maximum Insertion Loss1.25 dB
Maximum Power2 Watts


7 Section Bandpass Filter With SMA Female Connectors Operating From 11.7 GHz to 12.8 GHz With a 1.1 GHz Passband

Bandpass filter PE87FL1002 from Pasternack is part of our extensive in-stock RF components for sale. Our band pass filter is manufactured with SMA connectors that are female and in a 7 section design. This 7 section SMA bandpass filter for has an insertion loss of 1.25 dB and a maximum power of 2 Watts.

Frequency range of this band pass filter is 11.7 GHz to 12.8 GHz and the passband is 1.1 GHz. PE87FL1002 bandpass filter for band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 7 section bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
