7 Section Highpass Filter With SMA Female Connectors Operating From 2 GHz to 18 GHz

Product ID: PE87FL1019
7 Section Highpass Filter With SMA Female Connectors Operating From 2 GHz to 18 GHz

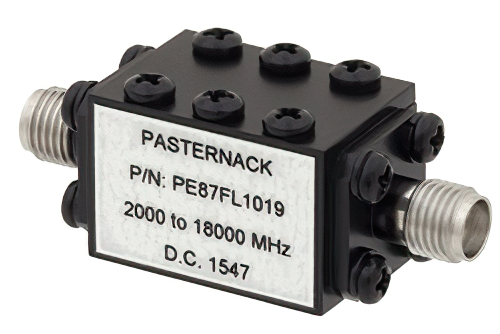

Image Views:  7 Section Highpass Filter With SMA Female Connectors Operating From 2 GHz to 18 GHz high resolution
Zoomalternate image

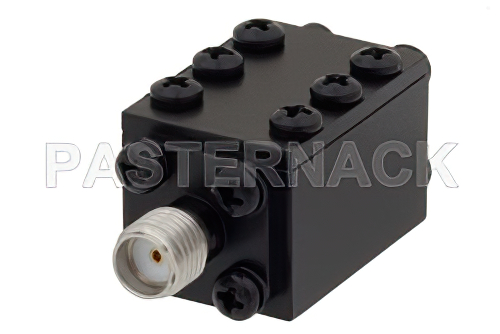

View 2


Click for:PE87FL1019 Datasheet
Click for:PE87FL1019 RoHS Cert
Click for:PE87FL1019 REACH Cert
Available Quantity: 18
Pricing Table
QUANTITYPRICE
1-1$741.11
2-4$711.47
5-9$681.82
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Min Frequency2 GHz
Max Frequency18 GHz
Maximum Insertion Loss2 dB
Impedance50 Ohm
Maximum Power5 Watts
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale


7 Section Highpass Filter With SMA Female Connectors Operating From 2 GHz to 18 GHz

Highpass filter PE87FL1019 from Pasternack is part of our extensive line of in-stock RF components for sale. Our high pass filter is manufactured with SMA connectors that are female and in a 7 section design. This 7 section SMA highpass filter has a VSWR of 0 and a maximum power of 5 Watts.

Frequency range of this band pass filter is 2 GHz to 18 GHz and the passband is 16 GHz. PE87FL1019 highpass filter is one of over 40,000 RF microwave and millimeter wave components supplied by Pasternack. Our 7 section highpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
