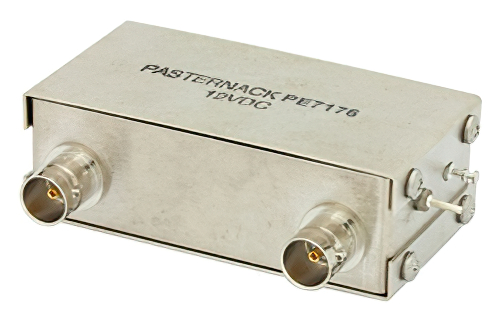

75 Ohm A/B Coaxial Electromechanical Relay Switch, DC to 1 GHz, 10W, 12V, BNC
Product ID:
PE7176
Pricing
Quantity | Price |
1-1 | $1,020.00 |
2-4 | $958.80 |
5-9 | $907.80 |
10+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 4

Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Connector Series | BNC |
Connector Gender | Female |
Switch Design | A/B Coaxial |
Minimum Frequency | DC |
Maximum Frequency | 1 GHz |
Impedance | 75 Ohm |
Maximum Input Power (CW) | 10 Watts |
Maximum VSWR | 2:1 |
Maximum Insertion Loss | 0.7 dB |
Minimum Isolation | 50 dB |
Description
75 Ohm A/B Coaxial Electromechanical Relay Switch, DC to 1 GHz, 10W, 12V, BNC
PE7176 electromechanical RF relay switch from Pasternack is a a/b coaxial switch design. Our a/b coaxial electromechanical RF switch uses BNC connectors at 75 Ohms. This BNC RF relay a/b coaxial switch has a maximum frequency of 1 GHz and maximum power of 10 Watts. The Pasternack radio frequency a/b coaxial BNC electro-mechanical relay switch is rated at a control voltage of 12 Volts, indicator voltage and switching speed of 15ms.
BNC a/b coaxial electro mechanical RF relay switch features with an isolation minimum of 50 dB. A/b coaxial electromechanical relay radio frequency switch PE7176 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our a/b coaxial BNC coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
