The Pasternack PE8DP1008 diplexer with 75 Ohm impedance is a passive RF device that enables frequency-domain multiplexing and covers different low-pass and high-pass frequency bands depending on the end-user applications. This is a 3-port device that has good insertion loss and VSWR performance with one low pass 54 MHz to 1 GHz frequency port, one high pass 5 MHz to 1 GHz frequency port, and one common port.

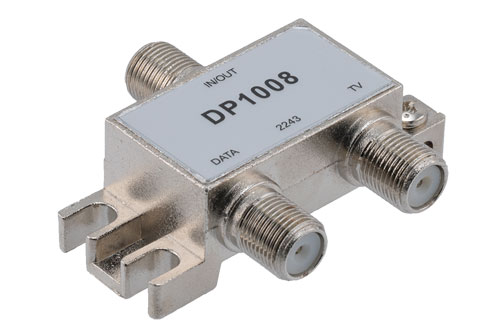

Pasternack’s high pass 5 MHz to 1 GHz diplexer filter has a threaded type F female connector that is rugged and vibration resistant. The PE8DP1008 threaded type RF diplexer body has a polished surface finish that provides uniformity of surfaces and increases aesthetics. The filter has a 2.106 in length, a 1.783 in width, and a height of 0.709 in making it the best fit for satellite TV and cable TV applications.
PE8DP1008 diplexer has a minimum low pass return loss of 13 dB, a minimum high pass return loss of 13 dB, maximum low pass insertion loss of 6 dB, and maximum high pass insertion loss of 1.8 dB which indicates that the line is well matched and gives better performance compared to the low-cost options in the market space. The body of this 75 Ohm RF diplexer with F female threaded type connectors is made of zinc.
This Pasternack PE8DP1008 RF diplexer with 75 Ohm impedance is in stock and ready to ship the same day you order. Based on your specifications, our expert technical support and highly trained sales team can find the ideal 75 Ohm zinc diplexer with threaded type F female connector.
