DC Block on Outer Conductor 75 Ohm F Male to F Female Operating From 10 MHz to 2 GHz

Product ID: PE8241
DC Block on Outer Conductor 75 Ohm F Male to F Female Operating From 10 MHz to 2 GHz

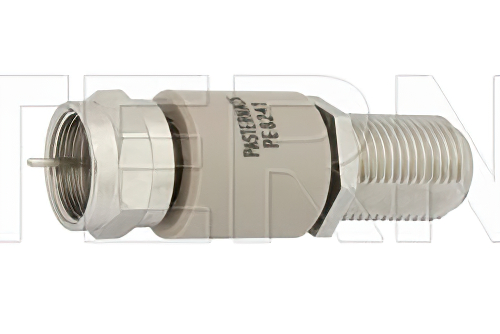

Image Views:  DC Block on Outer Conductor 75 Ohm F Male to F Female Operating From 10 MHz to 2 GHz high resolution
Zoomalternate image

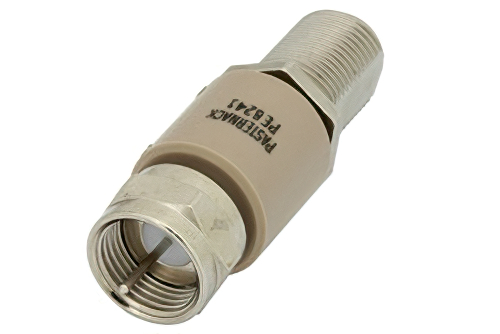

View 2


Click for:PE8241 Datasheet
Click for:PE8241 RoHS Cert
Click for:PE8241 REACH Cert
Available Quantity: 16
Pricing Table
QUANTITYPRICE
1-24$182.61
25-49$169.83
50-99$157.04
100-249$146.09
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Block TypeOuter
Impedance75 Ohm
Connector In SeriesF
Connector In GenderMale
Connector Out SeriesF
Connector Out GenderFemale
Minimum Frequency10 MHz
Maximum Frequency2 GHz
Maximum VSWR1.35:1


DC Block on Outer Conductor 75 Ohm F Male to F Female Operating From 10 MHz to 2 GHz

PE8241 is a coaxial RF DC block is from Pasternack and has an 75 Ohm impedance. Our 75 Ohm DC block is manufactured with a F input and F output. This F DC block is an outer direct current block type.

Pasternack outer F DC block is rated for a minimum frequency of 10 MHz and a maximum frequency of 2 GHz. PE8241 F outer DC block has a maximum insertion loss of 0.5 dB and a maximum VSWR of 1.35:1.

This outer F RF direct current block is just one of over 40,000 components for RF, microwave and millimeter wave applications supplied by Pasternack. Our coaxial DC block with F connectors is available to buy and be shipped globally the same day as with Pasternack's other RF parts in stock.
