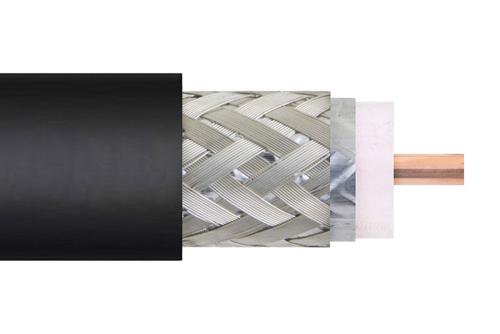

The LMR-400-75-DB part number from Pasternack is a low-loss coax cable that is flexible. Pasternack flexible coax RF cable has an impedance of 75 Ohm and a Foam PE dielectric. Our LMR-400-75-DB coax cable is constructed with a 0.405-inch jacket made of polyethylene. This low-loss coax cable has a nominal capacitance of 15.9 pF/Ft.
This LMR-400-75-DB flexible RF cable has a minimum RF shielding of 90 dB. Our coax cable from Pasternack has a maximum frequency of 2.5 GHz. Additional specifications for this LMR-400-75-DB RF coaxial cable are on our downloadable PDF datasheet above. This low-loss RF cable has a one-time minimum bend radius of 1 inch and a repeat minimum bend radius of 4 inch. Our low-loss 75 Ohm flexible cable has a peak power rating of 10,000 watts.
Our LMR-400-75-DB coax cable can operate at temperatures ranging from -40 to +85 degrees C. The coax cable has a typical insertion loss/attenuation of 0.6, 0.8, 1.5, 1.8, 2.6, 3.7, 4.9, 5.4, 5.7 and 6.4 dB/100ft at frequency of 30 MHz, 50 MHz, 150 MHz, 220 MHz, 450 MHz, 900 MHz, 1.5 GHz, 1.8 GHz, 2 GHz and 2.5 GHz respectively. The LMR-400-75-DB flexible RF cable has a copper center conductor.
Pasternack LMR-400-75-DB low-loss coax cables are part of our RF, microwave, and millimeter wave components. These flexible cables and our other RF parts are available for same-day shipping worldwide. Custom RF cable assemblies using LMR-400-75-DB or other coax can be built and shipped the same business day as well.
LMR® is a registered trademark of Times Microwave Systems.
