75 Ohm Push-On MCX Plug Right Angle to 75 Ohm SMC Jack Bulkhead Cable Using 75 Ohm RG187 Coax

Product ID: PE3C8196

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	MCX
Connector 1 Gender	Plug
Connector 1 Polarity	Standard
Connector Angle 1	Right Angle
Connector 1 Impedance	75 Ohm
Connector 2 Series	SMC
Connector 2 Gender	Jack
Connector 2 Polarity	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector 2 Impedance	75 Ohm
Connector 1 Body Material	Brass
Connector 1 Body Plating	Gold
RF Cable Part Number	RG187A/U
RF Cable Type	RG187
RF Cable Impedance	75 Ohm

Description

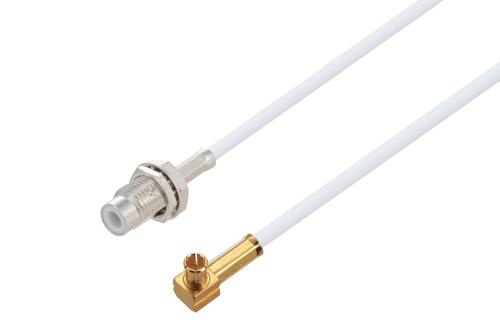

75 Ohm Push-On MCX Plug Right Angle to 75 Ohm SMC Jack Bulkhead Cable Using 75 Ohm RG187 Coax

Radio frequency assembly 75 Ohm push-on MCX plug right angle to 75 Ohm SMC jack bulkhead cable using 75 Ohm RG187 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. The 75 Ohm push-on MCX plug right angle to 75 Ohm SMC jack bulkhead cable using 75 Ohm RG187 coax, like our other Pasternack coaxial cable assemblies, will ship the same day and any custom MCX to SMC cable assembly orders will ship same business day as well.

Pasternack RF coax cable assembly is built with right angle MCX cable connection on one end and SMC bulkhead cable connection on the other. Our right angle MCX to SMC cable assembly has plug gender on end 1 and jack on end 2. PE3C8196 can also be known as a right angle MCX male to SMC female cable assembly and will be shipped same-day as it is purchased. This RF cable assembly with 0.5 inches diameter has copper clad steel as cable inner conducting material and PTFE dielectric type.

MCX male to SMC female cable assembly PE3C8196 is built with RG187 which is a flexible coax type. The Pasternack flexible MCX cable assembly is manufactured with right angle MCX to SMC cable connectors, has a 75 Ohm impedance and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body with gold plating. Additional dimensions, specifications and CAD drawings for this PE3C8196 RF cable are available on our downloadable PDF datasheet.PE3C8196 can also be used in the other direction and will be SMC jack bulkhead to right angle MCX plug cable assembly if the opposite connectivity is required.

MCX right angle male to SMC female bulkhead cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality MCX to SMC cable assembly for quick shipment worldwide. Variations of MCX cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured.For further information on similar products, our expert technical support and trained sales team can get you the ideal MCX RF cable assembly as per your requirements.
