Standard SMC 0.5 Watt Dummy Loads

Check out our new RF calculators & conversion tools...

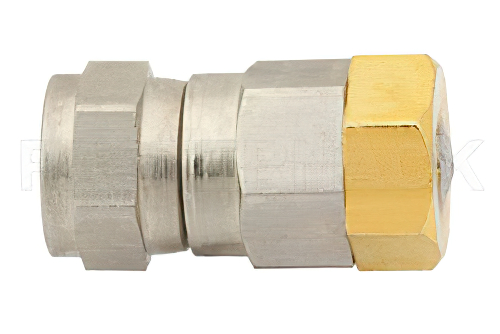

75 Ohm 0.5 Watts Nickel Plated Brass SMC Plug RF Load Up To 1,000 MHz

Product ID: PE6055
75 Ohm 0.5 Watts Nickel Plated Brass SMC Plug RF Load Up To 1,000 MHz


Image Views:  75 Ohm 0.5 Watts Nickel Plated Brass SMC Plug RF Load Up To 1,000 MHz high resolution
Zoomalternate image
View 2


Click for:PE6055 Datasheet
DISCONTINUED PRODUCT
Search for alternative
Terminations.

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesSMC
Connector GenderPlug
Minimum FrequencyDC
Maximum Frequency1 GHz
Impedance75 Ohm
Maximum Power0.5 Watt


75 Ohm 0.5 Watts Nickel Plated Brass SMC Plug RF Load Up To 1,000 MHz

PE6055 0.5 Watts RF load (also known as termination or dummy load) has a SMC connector that is plug. This Pasternack 0.5 watt SMC plug load / termination is rated for a maximum frequency of 1 GHz. Our SMC plug termination load is a rf load termination with a 75 Ohm impedance.

This SMC load / coax terminator is manufactured with no chain. PE6055 0.5 watt SMC plug load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our SMC plug 0.5 watt termination load will ship worldwide the same day as purchased.
