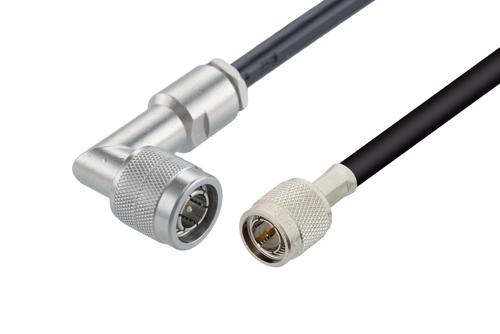

Radio frequency assembly 75 Ohm TNC male to 75 Ohm TNC male right angle cable using 75 Ohm RG59 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The 75 Ohm TNC male to 75 Ohm TNC male right angle cable using 75 Ohm RG59 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom TNC to TNC cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a TNC cable connection on one end and a right angle TNC cable connection on the other. Our TNC to right angle TNC cable assembly has a male gender on end 1 and a male on end 2. PE39254 can also be known as a TNC plug to right angle TNC plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PE dielectric type.
Our PE39254 RF cable has a PVC (NC) jacket of 0.242-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -25 to 70 degrees C. The flexible RF cable has an in-series connection.
TNC plug to TNC plug cable assembly PE39254 is built with RG59 which is a flexible coax type. The Pasternack flexible TNC cable assembly is manufactured with TNC to right angle TNC cable connectors, has a 75 Ohm impedance, and is single shielded. One connector features the crimp/solder attachment method and a brass body with nickel plating, while the other has the clamp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE39254 can also be used in the other direction and will be a right angle TNC male to TNC male cable assembly if the opposite connectivity is required.
TNC plug to TNC right angle plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality TNC to TNC cable assembly for quick shipment worldwide. Variations of TNC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal TNC to TNC RF cable assembly as per your requirements.
