8 Section Bandpass Filter With SMA Female Connectors Operating From 17.2 GHz to 21.2 GHz With a 4 GHz Passband

Product ID: PE87FL1007
8 Section Bandpass Filter With SMA Female Connectors Operating From 17.2 GHz to 21.2 GHz With a 4 GHz Passband


Image Views:  8 Section Bandpass Filter With SMA Female Connectors Operating From 17.2 GHz to 21.2 GHz With a 4 GHz Passband high resolution
Zoomalternate image

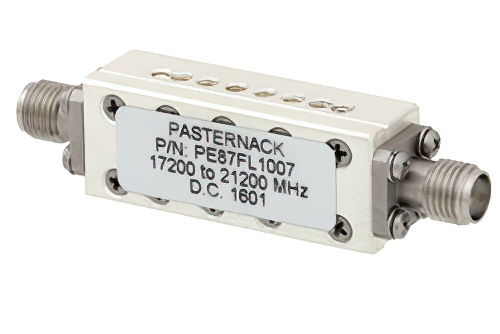

View 2


Click for:PE87FL1007 Datasheet
Click for:PE87FL1007 RoHS Cert
Click for:PE87FL1007 REACH Cert
Available Quantity: 9
Pricing Table
QUANTITYPRICE
1-9$450.12
10-24$427.61
25-49$405.11
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale
Bandpass Min Frequency17.2 GHz
Bandpass Max Frequency21.2 GHz
RF Filter DesignCombline
Impedance50 Ohm
Maximum Insertion Loss1 dB
Maximum Power2 Watts


8 Section Bandpass Filter With SMA Female Connectors Operating From 17.2 GHz to 21.2 GHz With a 4 GHz Passband

Bandpass filter PE87FL1007 from Pasternack is part of our extensive in-stock RF components for sale. Our band pass filter is manufactured with SMA connectors that are female and in a 8 section design. This 8 section SMA bandpass filter for has an insertion loss of 1 dB and a maximum power of 2 Watts.

Frequency range of this band pass filter is 17.2 GHz to 21.2 GHz and the passband is 4 GHz. PE87FL1007 bandpass filter for band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 8 section bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
