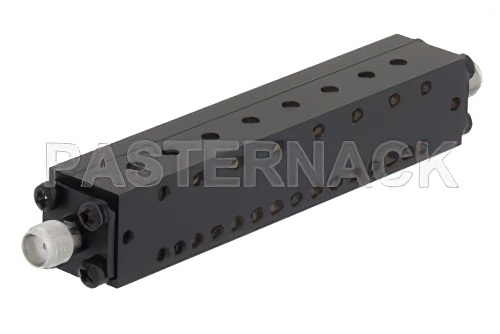

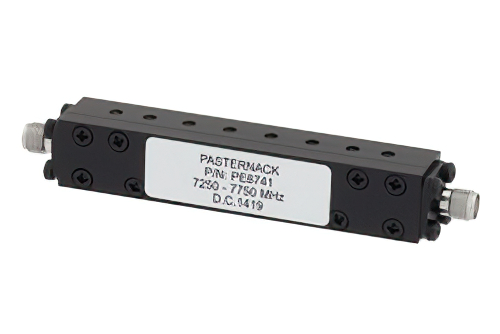

8 Section Bandpass Filter With SMA Female Connectors Operating From 7.25 GHz to 7.75 GHz With a 500 MHz Passband

Product ID: PE8741
8 Section Bandpass Filter With SMA Female Connectors Operating From 7.25 GHz to 7.75 GHz With a 500 MHz Passband


Image Views:  8 Section Bandpass Filter With SMA Female Connectors Operating From 7.25 GHz to 7.75 GHz With a 500 MHz Passband high resolution
Zoomalternate image
View 2


Click for:PE8741 Datasheet
Click for:PE8741 RoHS Cert
Click for:PE8741 REACH Cert
Available Quantity: 23
Pricing Table
QUANTITYPRICE
1-9$391.55
10-24$371.97
25-49$352.40
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
BandsVSAT
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale
Bandpass Min Frequency7.25 GHz
Bandpass Max Frequency7.75 GHz
RF Filter DesignCombline
Maximum Insertion Loss1.75 dB
Maximum Power5 Watts


8 Section Bandpass Filter With SMA Female Connectors Operating From 7.25 GHz to 7.75 GHz With a 500 MHz Passband

VSAT bandpass filter PE8741 from Pasternack is part of our extensive in-stock RF components for sale. Our VSAT band pass filter is manufactured with SMA connectors that are female and in a 8 section design. This 8 section SMA bandpass filter for VSAT has an insertion loss of 1.750 dB and a maximum power of 5 Watts.

Frequency range of this band pass filter is 7.25 GHz to 7.75 GHz and the passband is 500 MHz. PE8741 bandpass filter for VSAT band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 8 section VSAT bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
