N 8 Way Power Dividers 50 Ohm

Check out our new RF calculators & conversion tools...

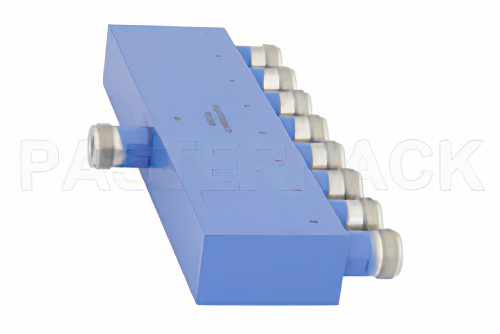

50 Ohm 8 Way N Power Divider From 2 MHz to 500 MHz Rated at 1 Watts

Product ID: PE2046
50 Ohm 8 Way N Power Divider From 2 MHz to 500 MHz Rated at 1 Watts


Image Views:  50 Ohm 8 Way N Power Divider From 2 MHz to 500 MHz Rated at 1 Watts high resolution
Zoomalternate image
View 2


Click for:PE2046 Datasheet
Click for:PE2046 RoHS Cert
Click for:PE2046 REACH Cert
DISCONTINUED PRODUCT
Search for alternative
Power Dividers.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series InN
Connector Gender InFemale
Minimum Frequency2 MHz
Maximum Frequency500 MHz
Number of Output Ports8 Port
Impedance50 Ohm
Maximum Input Power1 Watt


50 Ohm 8 Way N Power Divider From 2 MHz to 500 MHz Rated at 1 Watts

PE2046 8 way N power divider (also known as a N coaxial power splitter) is rated for a minimum frequency of 2 MHz and a maximum frequency of 500 MHz. This Pasternack 8 port N power divider / coaxial splitter has a 50 Ohm impedance and a maxium input power of 1 Watts. Our N coaxial RF splitter / divider has a female N input and 8 female N output ports.

This 8 way N RF power divider from Pasternack is a reactive design and has a maximum insertion loss of 0. The maximum input VSWR of this N reactive splitter / divider is and the minimum isolation is 20 dB. Our 8 port N power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This reactive 8 way N female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
