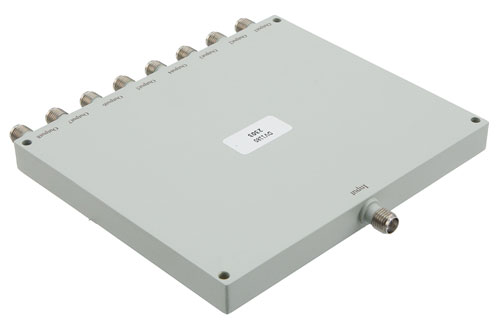

The PE20DV1180 8-way waveguide power divider (also known as a coaxial power splitter) is rated for a minimum frequency of 500 MHz and a maximum frequency of 6 GHz. This Pasternack 8 port power divider/coaxial splitter has a 50 Ohm impedance and a maximum input power of 30 kW. Our coaxial RF splitter/divider has a female input and 8 female output ports. This RF power divider allows the splitting of a single signal into multiple signals with equal magnitude and phase. Our 8-way waveguide power divider has 300 kW of peak input power.
Pasternack’s PE20DV1180 coax connectorized power splitter has an aluminum housing and can handle maximum reverse power up to 2 Watts. This threaded connector waveguide power divider has a 0.5 dB maximum amplitude balance. Our 50 Ohm radio frequency power divider is built to operate across a temperature range of -40 deg C to 85 deg C. This 6 GHz waveguide power divider has 5 degrees and 7 degrees typical and maximum phase balance, respectively. Additional power divider specifications and dimensions can be found on its PDF specification datasheet and CAD drawings above.
This 8-way RF power divider from Pasternack has a maximum insertion loss of 3.5 dB. The maximum input VSWR of this splitter/divider is 1.6:1 and the minimum isolation is 18 dB. The PE20DV1180 waveguide power divider from Pasternack is ideal for test and measurement, military communications, commercial communications, wireless communications and satcom applications.
Our 8 port waveguide power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This 8-way coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect waveguide power divider for your requirements.
