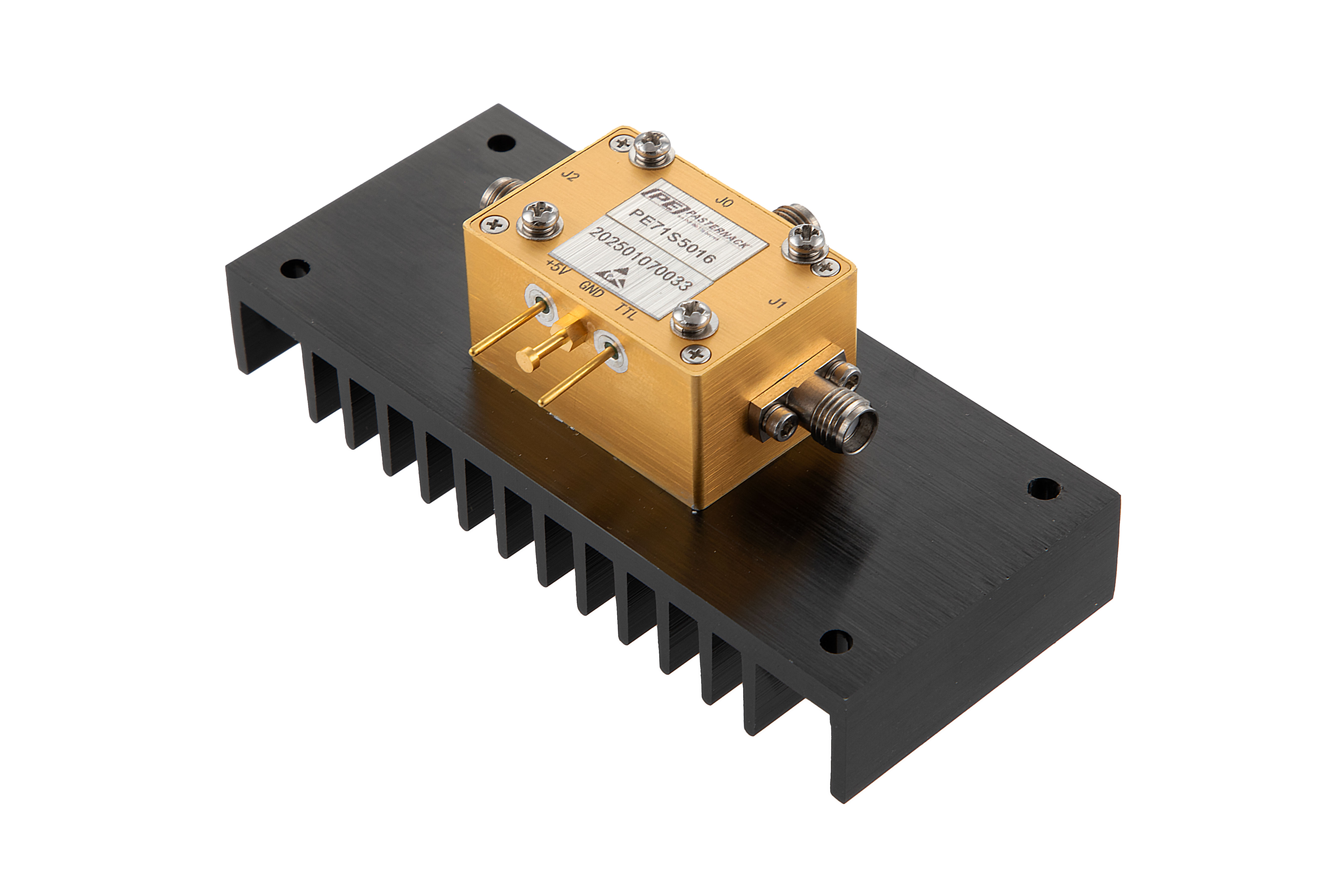

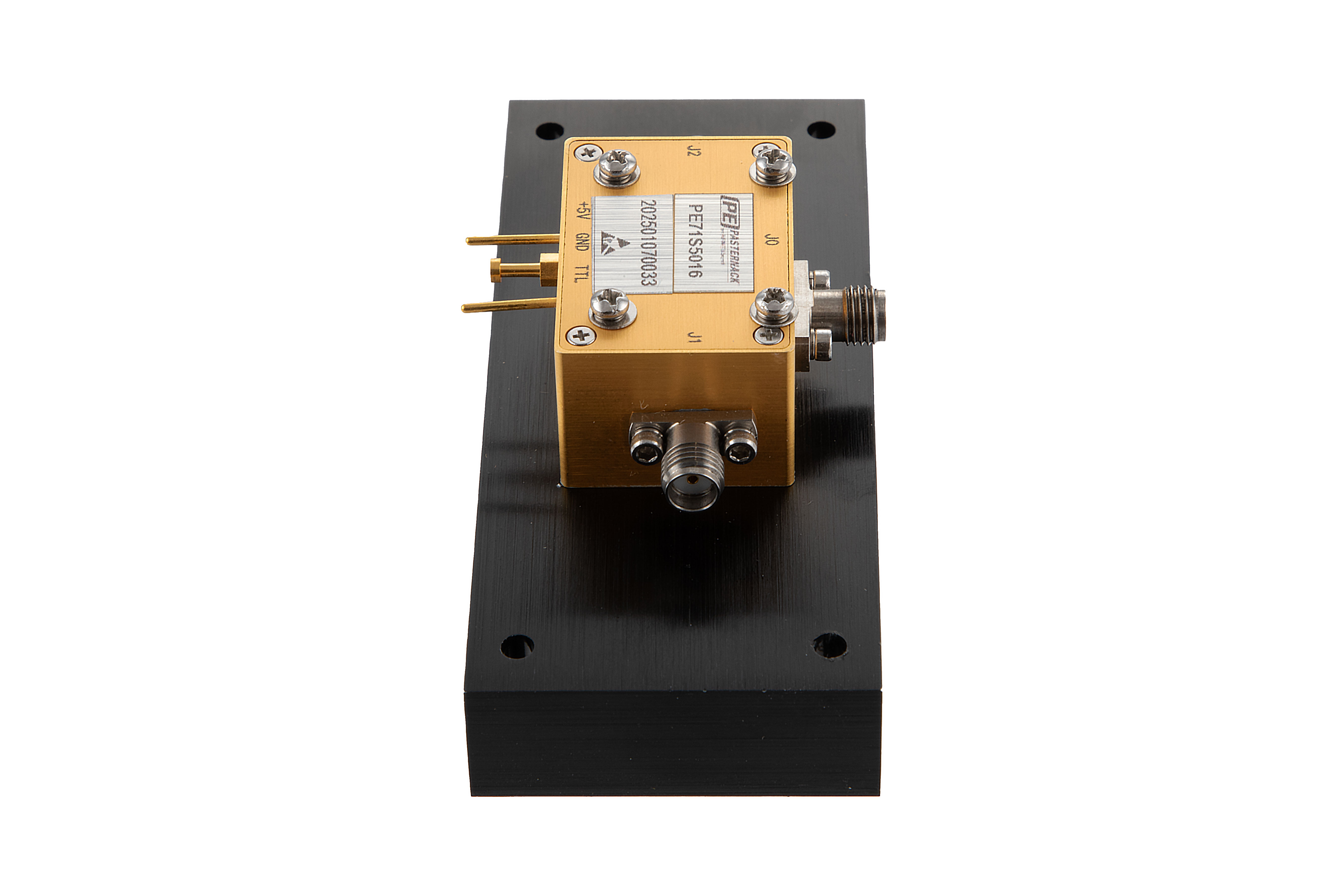

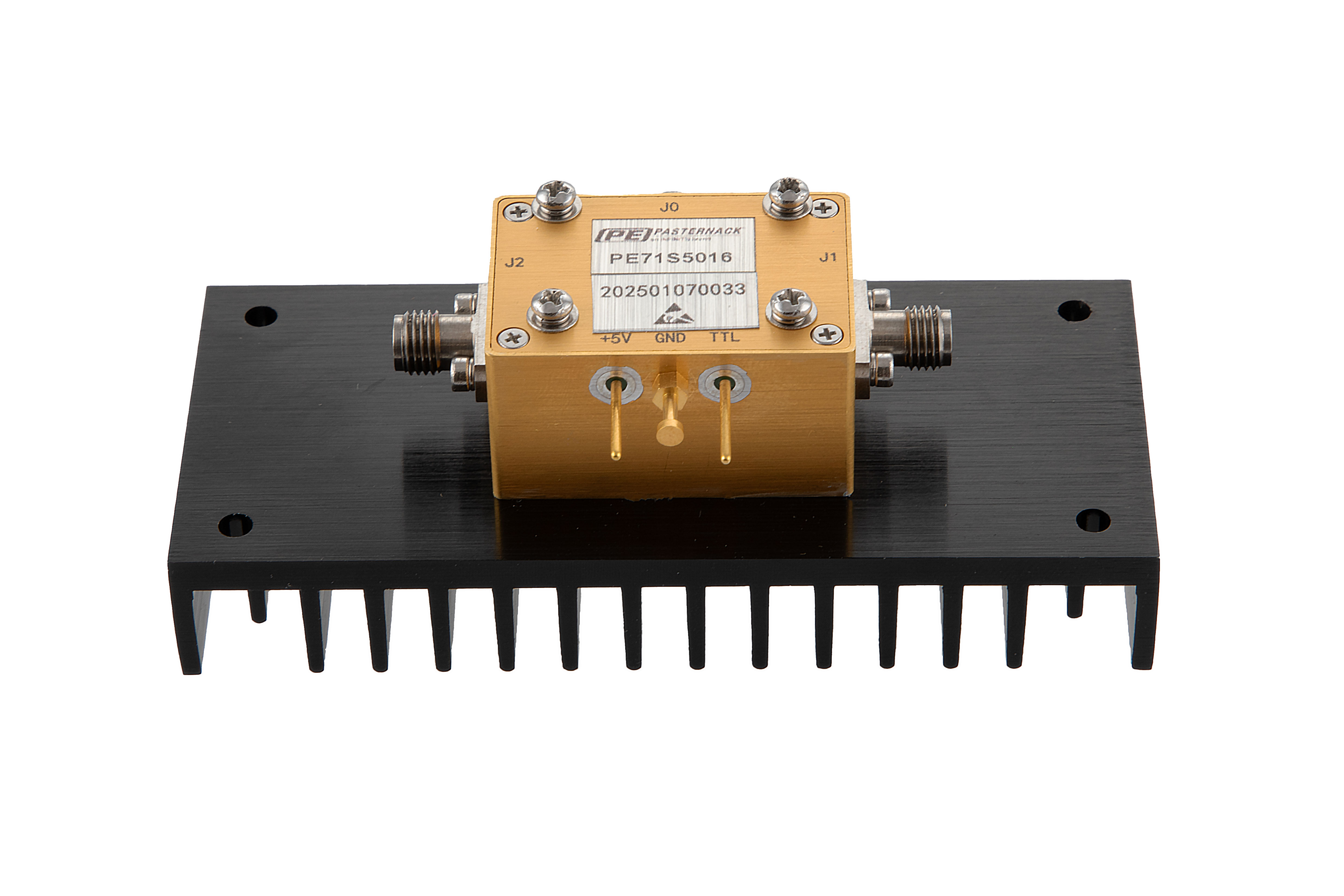

The PE71S5016 PIN diode switch from Pasternack has a absorptive design with a SPDT switch configuration. Our RF absorptive PIN diode switch uses SMA connectors at 50 Ohm impedance. This SMA PIN diode absorptive switch has a minimum frequency of 6 GHz and a maximum frequency of 18 GHz. The Pasternack PIN diode absorptive RF switch is rated at a switching speed of 350 ns. Make your online purchase right now to take advantage of our same-business-day shipping.
This absorptive SPDT radio frequency PIN diode switch has a female gender configuration and is designed to withstand a series of environmental test conditions including altitude, vibration, shock and humidity. Our PE71S5016 PIN diode switch has a gold-plated aluminum body. This PIN diode switch is rated at a 5 Vdc voltage. Our wideband RF PIN diode switch operates within a temperature range of -40 deg C to 85 deg C.
This 50 Ohm SPDT PIN diode switch has a 2:1 maximum VSWR (Voltage Standing Wave Ratio). The maximum insertion loss of this SMA absorptive switch is 3.5 dB with a minimum isolation of 60 dB. Additional specifications for this wideband SPDT PIN diode switch can be found on its PDF specification datasheet and CAD drawings.
The absorptive PIN diode radio frequency switch PE71S5016 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our absorptive SMA coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect wideband RF PIN diode switch for your requirement.
