SPST PIN Diode Switches

Check out our new RF calculators & conversion tools...

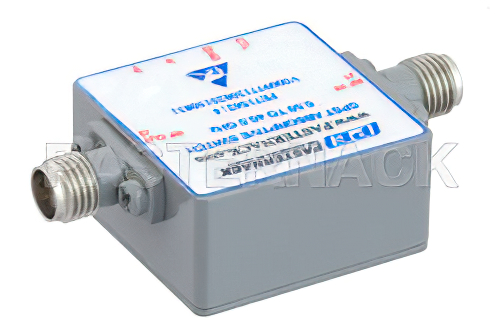

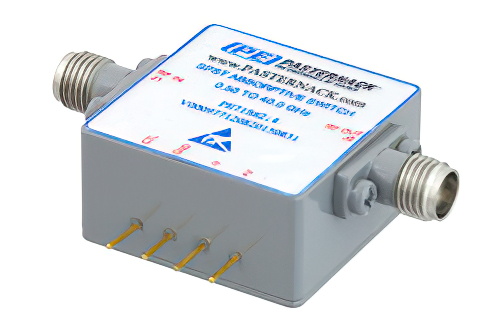

Absorptive SPST PIN Diode Switch Operating From 500 MHz to 40 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable 2.92mm

Product ID: PE71S6214
Absorptive SPST PIN Diode Switch Operating From 500 MHz to 40 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable 2.92mm


Image Views:  Absorptive SPST PIN Diode Switch Operating From 500 MHz to 40 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable 2.92mm high resolution
Zoomalternate image
View 2


Click for:PE71S6214 Datasheet
Click for:PE71S6214 RoHS Cert
Click for:PE71S6214 REACH Cert
Available Quantity: 7
Pricing Table
QUANTITYPRICE
1-1$2,950.00
2-4$2,773.00
5-9$2,625.50
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series2.92mm
Connector GenderFemale
Switch DesignAbsorptive
Minimum Frequency500 MHz
Maximum Frequency40 GHz
Impedance50 Ohm
Maximum Input Power0.1 Watts
Maximum Input VSWR2.5:1
Maximum Insertion Loss5.5 dB
Minimum Isolation55 dB


Absorptive SPST PIN Diode Switch Operating From 500 MHz to 40 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable 2.92mm

PE71S6214 PIN diode switch from Pasternack is a Absorptive design. Our RF Absorptive PIN diode switch uses 2.92mm connectors at 50 Ohm. This 2.92mm PIN diode Absorptive switch has a minimum frequency of 500 MHz and a maximum frequency of 40 GHz. The Pasternack PIN diode Absorptive RF switch is rated at a switching speed of 100 ns and a maximum input power of 0.1 Watts (+20 dBm ).

Insertion loss maximum of this 2.92mm Absorptive switch is 5.5 dB with an isolation minimum of 55 dB. Absorptive PIN diode radio frequency switch PE71S6214 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Absorptive 2.92mm coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
