Transfer PIN Diode Switches

Check out our new RF calculators & conversion tools...

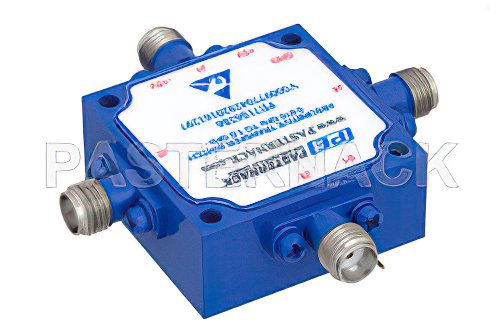

Absorptive Transfer PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to 2 Watts (+33 dBm) and Field Replaceable SMA

Product ID: PE71S6286
Absorptive Transfer PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to 2 Watts (+33 dBm) and Field Replaceable SMA


Image Views:  Absorptive Transfer PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to 2 Watts (+33 dBm) and Field Replaceable SMA high resolution
Zoomalternate image
View 2


Click for:PE71S6286 Datasheet
Available Quantity: 6
Pricing Table
QUANTITYPRICE
1-1$2,851.62
2-4$2,737.56
5-9$2,623.49
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignAbsorptive
Minimum Frequency10 MHz
Maximum Frequency1 GHz
Impedance50 Ohm
Maximum Input Power2 Watts
Maximum Input VSWR1.5:1
Maximum Insertion Loss1.3 dB
Minimum Isolation80 dB


Absorptive Transfer PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to 2 Watts (+33 dBm) and Field Replaceable SMA

PE71S6286 PIN diode switch from Pasternack is a Absorptive design. Our RF Absorptive PIN diode switch uses SMA connectors at 50 Ohm. This SMA PIN diode Absorptive switch has a minimum frequency of 10 MHz and a maximum frequency of 1 GHz. The Pasternack PIN diode Absorptive RF switch is rated at a switching speed of 100 ns and a maximum input power of 2 Watts (+33 dBm ).

Insertion loss maximum of this SMA Absorptive switch is 1.3 dB with an isolation minimum of 80 dB. Absorptive PIN diode radio frequency switch PE71S6286 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Absorptive SMA coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
