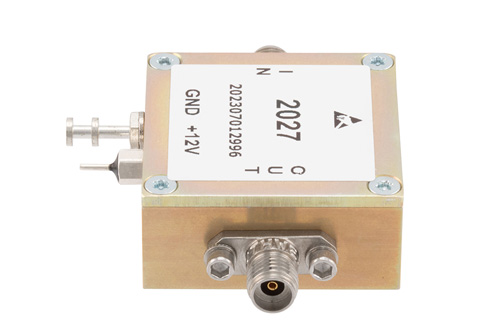

RF frequency multiplier (also referred to as a frequency doubler) PE88X2027 from Pasternack has SMA connectors and are 50 Ohm. Our SMA frequency multiplier is manufactured for a minimum frequency input of 9 GHz and a maximum frequency input of 14.5 GHz. This SMA microwave frequency multiplier/doubler output minimum frequency is 18 GHz and output maximum frequency of 29 GHz. Our active 2x frequency multiplier can operate at temperatures ranging from -40 to +85 deg C and has a maximum VSWR of 2:1. Make your online purchase right now to take advantage of our same-day shipping.
This active 2x frequency multiplier is powered by DC voltage ranging from 9 to 15 Vdc with 110 mA of DC current. Our 50 Ohm frequency multiplier has an input threaded SMA female connector and output 2.92mm female connector. This active frequency multiplier is suitable for aerospace & defense, test & measurement, microwave radio systems, military & commercial communication systems, research & development, SATCOM and wireless communications applications. Our SMA female multiplier comes with a 50 Ohm impedance and a max input power rating (CW) of 6 dBm. The active 2x frequency multiplier has a typical fundamental isolation of 20 dB. Our active 2x frequency multiplier has a storage temperature ranging from -55 to +105 deg C.
Our active 2x frequency multiplier has a typical phase noise of -132 dBc/Hz at 100kHz offset. This 6 dBm active frequency multiplier has an overall length of 1.25 inches, a width of 1.25 inches, and a weight of 0.085 lbs. Our active 2x frequency multiplier has a typical conversion gain of 12 dB. Additional dimensions and specifications for this active 2x frequency multiplier are on our downloadable PDF datasheet above.
SMA frequency doubler/multiplier PE88X2027 from Pasternack is rated for a 6 dBm and is just one part of over 40,000 RF, microwave, and millimeter wave components from supplier Pasternack. This RF frequency multiplier with SMA connectors is in-stock. Pasternack is where to buy your radio frequency components for same day shipping throughout the United States and internationally, as with all other Pasternack RF parts. For further information on similar products, our expert technical support and trained sales team can get you to the ideal active 2x frequency multiplier as per your requirements.
