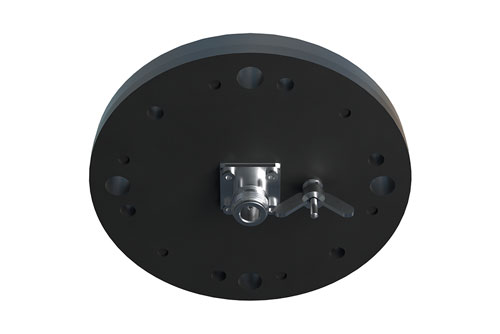

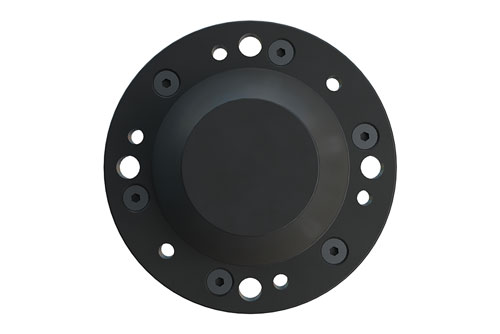

The PEANGPS1017 is an active GPS dual band L1/L2 antenna, from Pasternack, with N-Type Female connector is specifically designed for military and unmanned vehicle applications. This high precision antenna conforms to MIL-STD-810 for humidity, shock, vibration, blowing rain, water immersion and has an altitude rating of 20 Km. The Mil Spec active GPS antenna is ideally suited for use in harsh active operating environments where stability and reliability of GPS signal is required.
Our GPS antenna specialists are ready and available to answer any questions you may have on the PEANGPS1017. This antenna operates in the 1.215 - 1.239GHz and 1.563-1.587 GHz bands meeting GPS L1/L2 requirements. The PEANGPS1017 antenna has an integrated LNA with 3 dB noise figure and gain of 20 dBi. It is mounted using standard US 4 hole or NATO 3/6 hole pattern. Pasternack's active GPS Antenna PEANGPS1017 is in stock and ready to ship.
Features
- Dual Band L1/L2
- MIL-STD-810
- N-type Female
- US 4 hole or NATO 3/6 hole pattern
- 20 dBi Gain, 3 dB Noise Figure
- Rugged, low-profile construction
- High 30 dB Out of Band Rejection
- TAA Compliant
Applications
- GPS L1/L2
- Military Vehicles
- Unmanned Vehicles/Vessels
- Autonomous Vehicles
- Rugged, Harsh, Hostile Environments
