SMA Adjustable Phase Trimmers

Check out our new RF calculators & conversion tools...

Adjustable Phase Trimmer, DC to 18 GHz, With an Adjustable Phase of 10 Deg. Per GHz and SMA

Product ID: PE8203
Adjustable Phase Trimmer, DC to 18 GHz, With an Adjustable Phase of 10 Deg. Per GHz and SMA

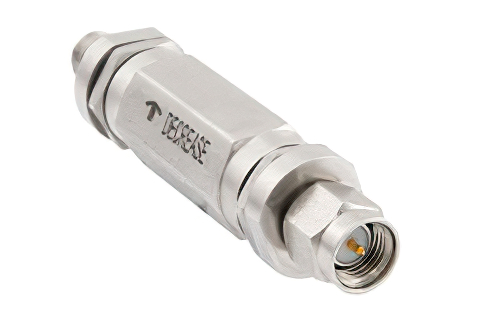

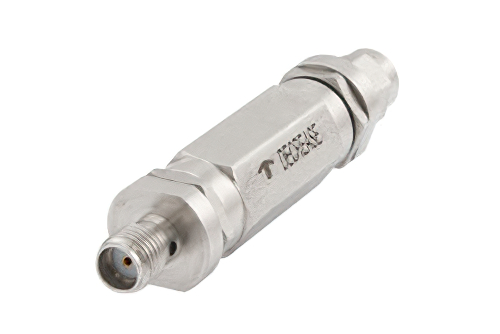

Image Views:  Adjustable Phase Trimmer, DC to 18 GHz, With an Adjustable Phase of 10 Deg. Per GHz and SMA high resolution
Zoomalternate image
View 2


Click for:PE8203 Datasheet
Click for:PE8203 REACH Cert
Available Quantity: 252
Pricing Table
QUANTITYPRICE
1-24$174.87
25-49$162.63
50-99$150.39
100+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Phase Adjustment10 Deg / Ghz
Connector In SeriesSMA
Connector In GenderMale
Connector In Impedance50 Ohm
Connector Out SeriesSMA
Connector Out GenderFemale
Connector Out Impedance50 Ohm
Maximum VSWR1.5:1
Maximum Insertion Loss0.08 dB


Adjustable Phase Trimmer, DC to 18 GHz, With an Adjustable Phase of 10 Deg. Per GHz and SMA

Pasternack adjustable phase trimmer PE8203 is part of our large selection of in-stock RF, microwave and millimeter wave components available for purchase. This adjustable phase trimmer is manufactured with SMA connectors and has a phase adjustment of 10 degrees. Our SMA adjustable phase trimmer has a minimum frequency of DC and a maximum frequency of 18 GHz.

SMA coaxial RF variable phase trimmer has a maximum input power of 0 watt and a maximum VSWR of 1.5:1. PE8203 coaxial SMA adjustable phase trimmer is one of over 40,000 RF components supplied by Pasternack. Our variable phase trimmer can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
