BNC to Banana Binding Post Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

Banana Binding Post Jack to 50 Ohm BNC Male Adapter

Product ID: PE9169

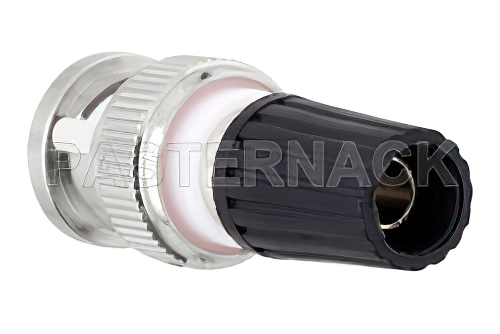

Banana Binding Post Jack to 50 Ohm BNC Male Adapter


Image Views:  Banana Binding Post Jack to 50 Ohm BNC Male Adapter high resolution
Zoomalternate image
View 2


Click for:PE9169 Datasheet
Click for:PE9169 RoHS Cert
Available Quantity: 467
Pricing Table
QUANTITYPRICE
1-24$18.86
25-49$17.92
50-99$16.97
100-249$16.22
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1Banana Binding Post
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


Banana Binding Post Jack to 50 Ohm BNC Male Adapter

Banana Binding Post adapter PE9169 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our Banana Binding Post to BNC adapter is a between series coaxial adapter design. This to 50 Ohm Banana Binding Post adapter is precision manufactured to RF components industry specifications.

Banana Binding Post jack to BNC male adapter is one of the many RF components that ship same day as they are ordered. PE9169 jack Banana Binding Post to male BNC adapter has a straight body. This Pasternack straight Banana Binding Post coax adapter is a in-line RF adapter.

Our jack Banana Binding Post to male BNC adapter PE9169 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This Banana Binding Post to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
