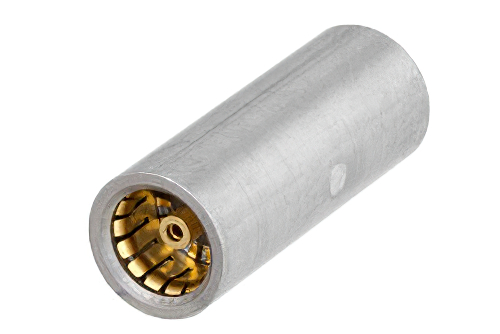

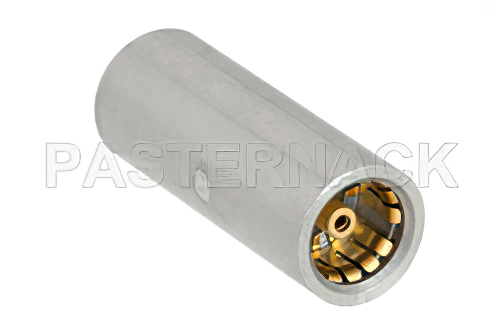

Slide-On BMA Jack to BMA Jack Slide-On Adapter

Product ID: PE91395
Slide-On BMA Jack to BMA Jack Slide-On Adapter


Image Views:  Slide-On BMA Jack to BMA Jack Slide-On Adapter high resolution
Zoomalternate image
View 2


Click for:PE91395 Datasheet
Click for:PE91395 RoHS Cert
Click for:PE91395 REACH Cert
Available Quantity: 25
Pricing Table
QUANTITYPRICE
1-24$52.23
25-49$48.57
50-99$44.92
100-249$41.78
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BMA
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BMA
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max22 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Passivated Stainless Steel
Connector Mount Method 2None
Connector Body Material 2Passivated Stainless Steel


Slide-On BMA Jack to BMA Jack Slide-On Adapter

BMA adapter PE91395 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our BMA to BMA adapter is a in-series coaxial adapter design. This 50 Ohm BMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 22 GHz.

BMA jack to BMA jack adapter is one of the many RF components that ship same day as they are ordered. PE91395 jack BMA to jack BMA adapter has a straight body. This Pasternack straight BMA coax adapter is a in-line RF adapter.

Our jack BMA to jack BMA adapter PE91395 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This BMA to BMA radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
