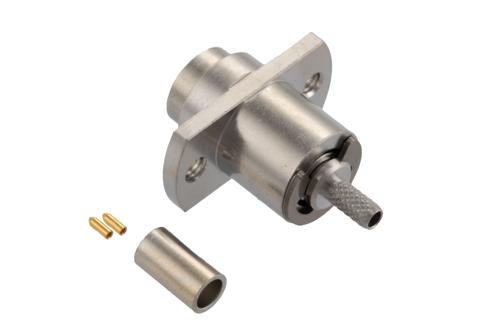

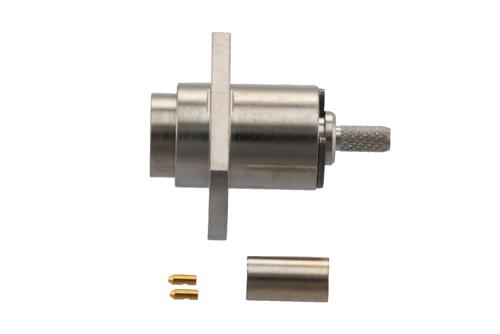

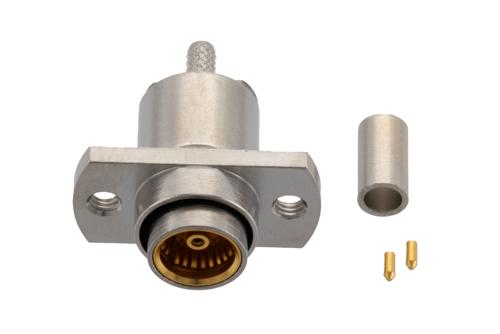

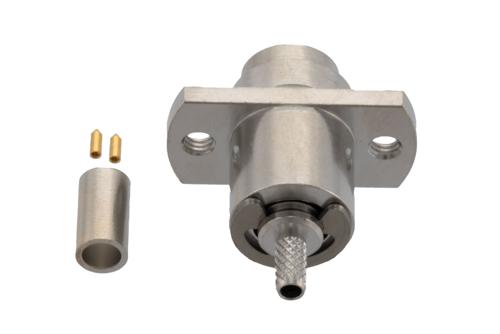

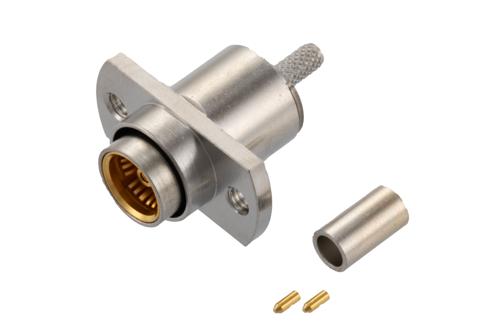

PE5154 BMA jack 2 hole flange mount coaxial connector has an interface type of BMA jack which is compatible with LMR-100A, PE-B100, PE-C100, RG174, RG174MN, RG316, RG188, PE-C100-LSZH, LMR-100-FR and LMR-100A-PVC cables and has an impedance of 50 Ohms. Pasternack’s BMA jack 2 hole flange mount connector uses crimp as an attachment method. Our jack BMA coaxial connector provides a maximum frequency of 12.4 GHz. This BMA jack RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack BMA jack 2 hole flange mount coaxial connector has a PTFE dielectric type and a VSWR of 1.2:1. Pasternack’s BMA coaxial connector has a brass body with copper-tin-zinc alloy plating. Our PE5154 BMA connector uses a gold over nickel over copper-plated brass contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 2 mOhms. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE5154 BMA 2 hole flange mount connector operates at a temperature range of -65 to 165 deg C. This threaded jack BMA coaxial RF connector has a maximum insertion loss of 0.105 dB. This BMA connector has a gold over nickel over copper inner contact plating. The Pasternack BMA jack connector has a maximum operating voltage of 670 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our BMA jack connector has a length of 0.85 inches, a width of 0.752 inches, and a weight of 0.0146 lbs. This radio frequency coaxial connector comes with a stainless steel washer.
This Pasternack jack BMA 2 hole flange mount connector will ship the same business day as purchased. Our 2 hole flange mount BMA jack connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
* LMR® is a registered trademark of Times Microwave Systems.
