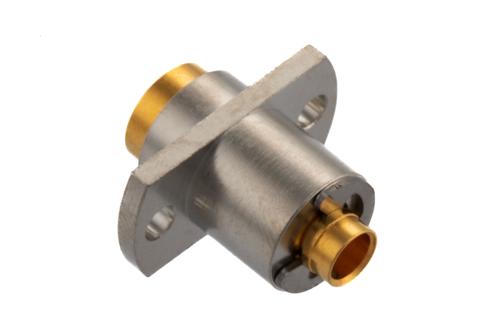

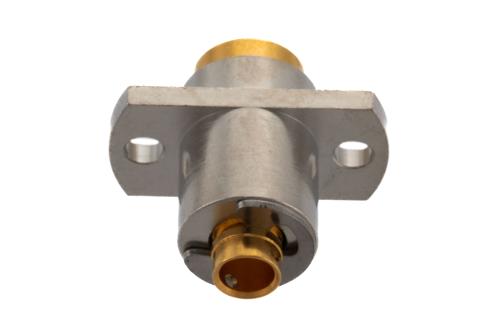

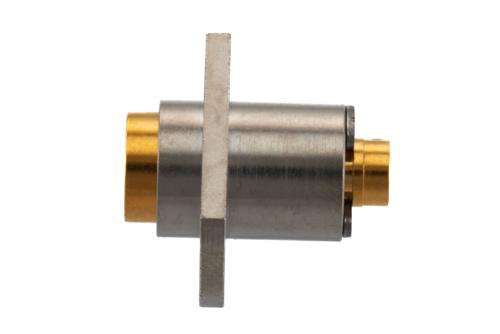

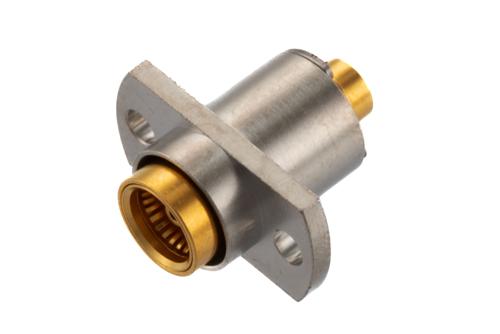

PE5160 BMA jack 2 hole flange mount coaxial connector has an interface type of BMA jack, which is compatible with PE-SR402AL, PE-SR402FL, PE-SR402FLJ, RG402 and RG402 tinned cables, and has an impedance of 50 Ohms. Pasternack’s BMA jack 2 hole flange mount connector uses solder as an attachment method. Our jack BMA coaxial connector provides a maximum frequency of 22 GHz. This BMA jack RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack BMA jack 2 hole flange mount coaxial connector has a PTFE dielectric type and a VSWR of 1.35:1. Pasternack’s BMA coaxial connector has a brass body with gold over nickel over copper plating. Our PE5160 BMA connector uses a gold over nickel over copper-plated brass contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 2 mOhms. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE5160 BMA 2 hole flange mount connector operates at a temperature range of -65 to 165 deg C. Our jack BMA coaxial RF connector has a maximum insertion loss of 0.14 dB. This BMA connector has a gold over nickel over copper inner contact plating. The Pasternack BMA jack connector has a maximum operating voltage of 1,000 Vrms and a dielectric withstanding voltage of 1,500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our BMA jack connector has a length of 0.709 inches, a width of 0.752 inches, and a weight of 0.013 lbs.
This Pasternack jack BMA 2 hole flange mount connector will ship the same business day as purchased. Our 2 hole flange mount BMA jack coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
