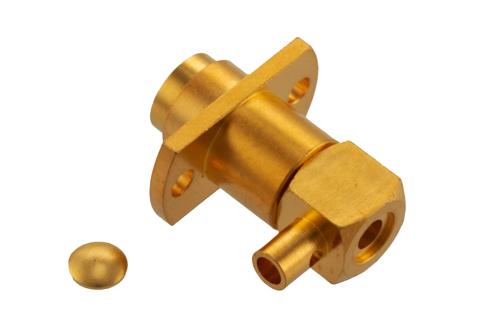

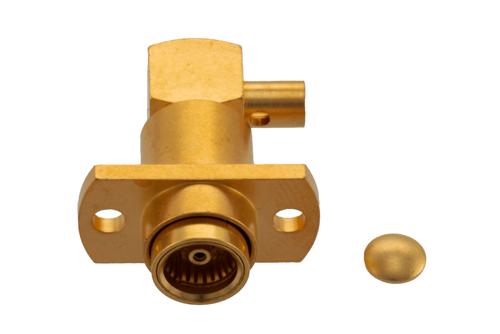

PE5156 BMA jack right angle 2 hole flange mount coaxial connector has an interface type of BMA jack which is compatible with PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405 and RG405 tinned cables and has an impedance of 50 Ohms. Pasternack’s BMA jack 2 hole flange mount connector uses solder as an attachment method. Our jack BMA right angle coaxial connector provides a maximum frequency of 6 GHz. This BMA jack RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack right angle BMA jack 2 hole flange mount coaxial connector has a PTFE dielectric type and a VSWR of 1.2:1. Pasternack’s BMA coaxial connector has a brass body with gold over nickel over copper plating. Our PE5156 BMA right angle connector uses a gold over nickel over copper-plated brass contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 2 mOhms. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE5156 BMA 2 hole flange mount connector operates at a temperature range of -65 to 165 deg C. This jack BMA coaxial RF connector has a maximum insertion loss of 0.073 dB. This right angle BMA connector has a gold over nickel over copper inner contact plating. The Pasternack BMA jack connector has a maximum operating voltage of 670 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our right angle BMA jack connector has a length of 0.866 inches, a width of 0.748 inches, and a weight of 0.024 lbs.
