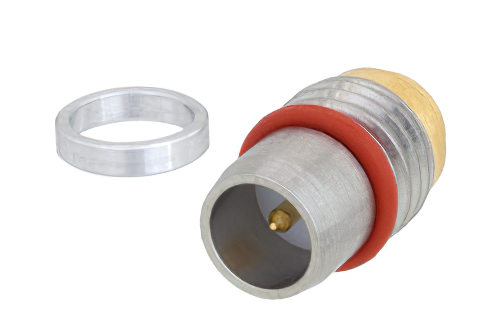

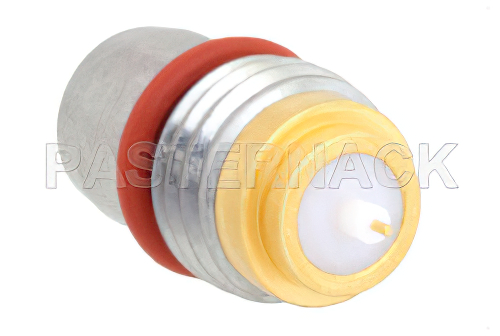

PE45354 BMA jack thread-in hermetically sealed terminal slide-on connector has an interface type of BMA jack, which is compatible with pin cables, and has an impedance of 50 Ohms. Pasternack’s BMA jack thread-in connector uses solder as an attachment method. Our jack BMA terminal connector provides a maximum frequency of 22 GHz. This BMA jack IP68 RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack BMA jack thread-inhermetically sealed terminalslide-on connector has a PTFE dielectric type and a VSWR of 1.25:1. Pasternack’s BMA terminal connector has a passivated stainless steel body. Our PE45354 BMA connector uses a gold-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from passivated stainless steel material has a contact life of 1000 cycles or more. The PE45354 BMA thread-in connector operates at a temperature range of -65 to 125 deg C. Our jack BMA terminal RF connector has a maximum insertion loss of 0.32 dB. This BMA connector has a gold inner contact plating. The Pasternack BMA jack connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,500 Vrms. This terminal RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our BMA jack connector has a length of 0.47 inches, a width of 0.25 inches, and a weight of 0.004 lbs.
This Pasternack jack BMA thread-in connector will ship the same business day as purchased. Our thread-in BMA jack terminal connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
