BMA Jack Straight Connectors

Check out our new RF calculators & conversion tools...

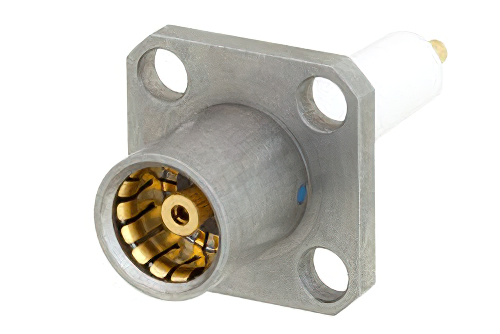

BMA Jack Slide-On Connector Solder Attachment 4 Hole Flange Mount Stub Terminal, .340 inch Hole Spacing

Product ID: PE45334
BMA Jack Slide-On Connector Solder Attachment 4 Hole Flange Mount Stub Terminal, .340 inch Hole Spacing


Image Views:  BMA Jack Slide-On Connector Solder Attachment 4 Hole Flange Mount Stub Terminal, .340 inch Hole Spacing high resolution
Zoomalternate image

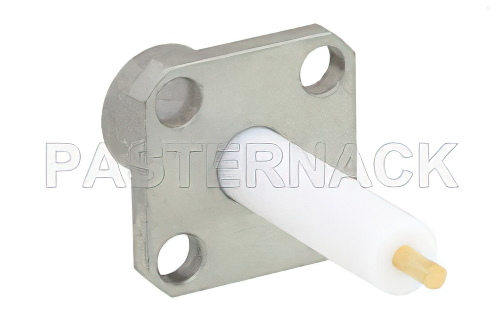

View 2


Click for:PE45334 Datasheet
Click for:PE45334 RoHS Cert
Click for:PE45334 REACH Cert
Available Quantity: 50
Pricing Table
QUANTITYPRICE
1-24$50.09
25-49$46.58
50-99$43.08
100-249$40.07
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBMA
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount Method4 Hole Flange
Minimum FrequencyDC
Maximum Frequency22 GHz


BMA Jack Slide-On Connector Solder Attachment 4 Hole Flange Mount Stub Terminal, .340 inch Hole Spacing

PE45334 BMA jack 4 hole flange terminal slide-on connector has an interface type of stub and a 50 Ohm impedance. Pasternack BMA jack 4 hole flange connector uses shield/contact solder as an attachment method. Our jack BMA terminal connector provides a minimum frequency of DC and a maximum frequency of 22 GHz.

The Pasternack BMA jack 4 hole flange terminal slide-on connector has a ptfe dielectric type and a VSWR of 1.25. The Pasternack BMA terminal connector has a passivated stainless steel body. Our PE45334 BMA connector uses beryllium copper contact and a gold plating material. This BMA jack 4 hole flange terminal slide-on RF connector is REACH compliant.

This Pasternack jack BMA 4 hole flange connector will ship the same day as purchased. Our 4 hole flange BMA jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BMA connector cable assemblies that will ship the same day as well.
