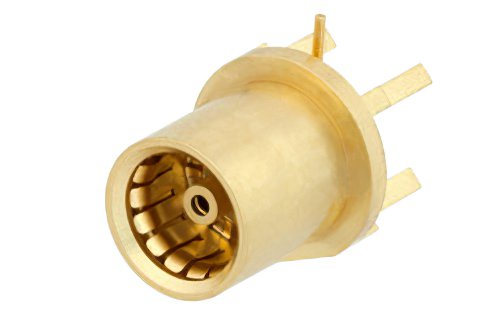

BMA Jack Slide-On Connector Solder Attachment Surface Mount PCB

Product ID: PE45338
BMA Jack Slide-On Connector Solder Attachment Surface Mount PCB


Image Views:  BMA Jack Slide-On Connector Solder Attachment Surface Mount PCB high resolution
Zoomalternate image

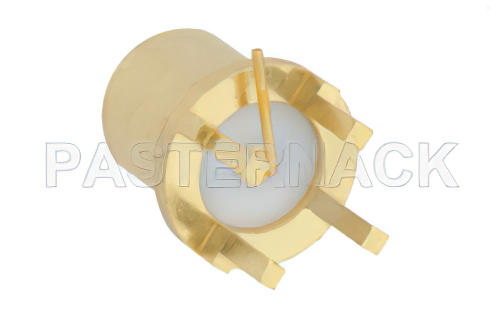

View 2


Click for:PE45338 Datasheet
Click for:PE45338 RoHS Cert
Click for:PE45338 REACH Cert
Available Quantity: 50
Pricing Table
QUANTITYPRICE
1-24$54.60
25-49$50.78
50-99$46.96
100-249$43.68
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBMA
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency2 GHz


BMA Jack Slide-On Connector Solder Attachment Surface Mount PCB

PE45338 BMA jack pcb slide-on connector has an interface type of surface mount and a 50 Ohm impedance. Pasternack BMA jack connector uses shield/contact solder as an attachment method. Our jack BMA pcb connector provides a minimum frequency of DC and a maximum frequency of 2 GHz.

The Pasternack BMA jack pcb slide-on connector has a ptfe dielectric type and a VSWR of 1.2. The Pasternack BMA pcb connector has a stainless steel body with gold plating. Our PE45338 BMA connector uses beryllium copper contact and a gold plating material. This BMA jack pcb slide-on RF connector is REACH compliant.

This Pasternack jack BMA connector will ship the same day as purchased. Our BMA jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BMA connector cable assemblies that will ship the same day as well.
